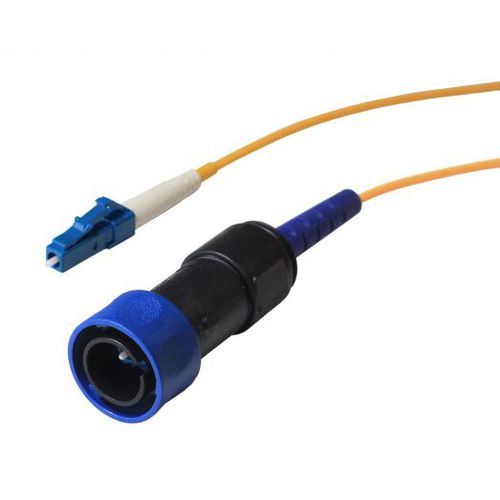

Fiber optic connector 4000 Series
datacircularbayonet

fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
fiber optic connector
Add to favorites
Compare this product

Characteristics

Type
data
Format
fiber optic
Shape
circular
Connection type
bayonet
Material
polyamide
Other characteristics
with cable, IEC, rugged, in-line, small, flame-retardant, IP68, IP69K, IP66
Product applications
industry
Field
outdoor, marine

Description

As the smallest rugged optical connector available on the market, the 4000 Series Fibre Simplex connector is ideal for outdoor broadcast, FTTX (fibre to the x), server room engineering, civil engineering, marine, aviation and rail applications. The connector’s small form factor is particularly useful where installation space is limited or multiple connectors need to be accommodated. Featuring a secure quick twist (30°) bayonet connection, the 4000 Series Fibre Simplex connector accommodates durable mechanical mating. Its industry standard LC interfaces (IEC 61754-20) features colour coded O-rings and washers for ease of identification. Mounting body options include Flex, Flex In-Line, and Rear Panel styles. Sealed to IP66 IP68 and IP69K when mated IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks Simplex LC-Type Interface Cabled Versions: 0S1, 0M1, 0M3 Cable range from 5 to 450M Diameter over coupling ring 19.7mm Flex, Flex In-Line and Rear Panel Colour coded O-rings & washers for easy identificaiton purposes Secure, proven locking system Flame Retardant moulding material - Polyamide UL94-V0 Tamper proof construction Sealing caps available to maintain IP68 rating EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1
