3-axis machining center BAZ 595 D
verticalfor stonefor marble

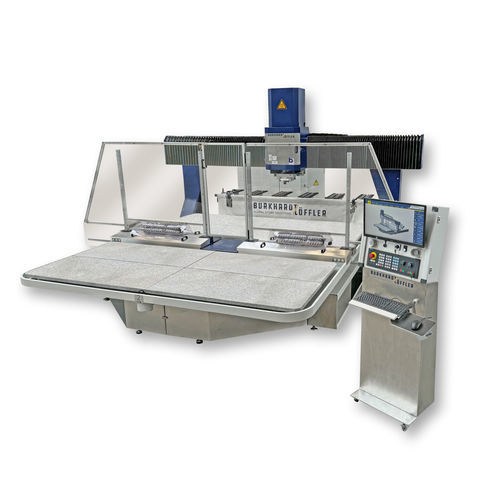

3-axis machining center - BAZ 595 D - burkhardt-hensel - vertical / for stone / for marble
3-axis machining center - BAZ 595 D - burkhardt-hensel - vertical / for stone / for marble
3-axis machining center - BAZ 595 D - burkhardt-hensel - vertical / for stone / for marble - image - 2
3-axis machining center - BAZ 595 D - burkhardt-hensel - vertical / for stone / for marble - image - 3
3-axis machining center - BAZ 595 D - burkhardt-hensel - vertical / for stone / for marble - image - 4
3-axis machining center - BAZ 595 D - burkhardt-hensel - vertical / for stone / for marble - image - 5
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Machined material
for stone, for marble
Structure
rotating table
Number of tool stations
60 tools, 120 tools
Associated functions
grinding, polishing
Other characteristics
high-precision, high-productivity, with automatic tool changer, with electronic control
X travel

3,600 mm
(141.73 in)

Y travel

1,600 mm
(62.99 in)

Z travel

450 mm
(17.72 in)

Rotational speed

Max.: 10,000 rpm
(62,832 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Power

15 kW
(20.39 hp)

Table rotation (C axis)

Max.: 3 °

Min.: -3 °

Work feed X-axis

Max.: 1,083.33 mm/s

Min.: 1,083.33 mm/s

Work feed Y-axis

Max.: 1,083.33 mm/s

Min.: 1,083.33 mm/s

Work feed Z-axis

Max.: 0.42 m/s
(1.38 ft/s)

Min.: 0.42 m/s
(1.38 ft/s)

Description

Overview

The BAZ 595 D is a CNC work center equipped with an automatic rotating table, designed for efficient series production of kitchen worktops, shower trays and other solid stone components. The integrated turntable permits simultaneous machining and loading, significantly improving machine utilization and production throughput.

Key advantages
  • Automatic rotating table enabling simultaneous working and loading, increasing machine utilization up to 80%.
  • Optional swivel axis (±3°) for manufacturing sloped drainboards and inclined finishes.
  • Optional fully automatic vacuum pod positioning for fast, repeatable clamping.
  • Built-in automatic tool changer with tool magazine (60 / 120 positions available).
  • Available electronic contact pressure control for X-, Y- and Z-axes for precision grinding and polishing.


Product preview / media
  • Embedded product video preview available on the page (YouTube thumbnail present).
  • Additional videos section with further product-related YouTube content for process demonstrations.


Technical specifications
  • Max. tool positions: 60 / 120
  • Max. workpiece size: 3600 x 1600 mm
  • Vertical travel (Z): 450 mm
  • Feed rates: X, Y 65 m/min; Z 25 m/min
  • Electro spindle power: 15 kW
  • Spindle speed range: 0 - 10,000 rpm
