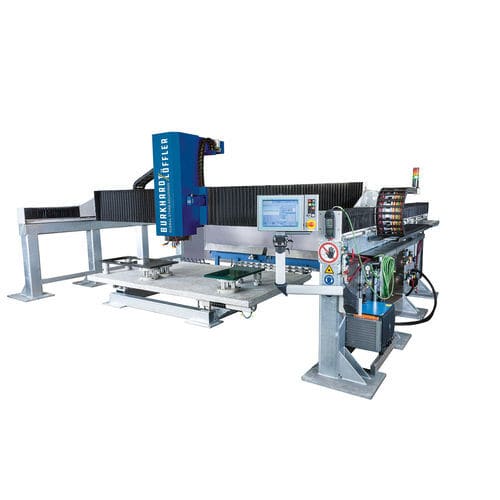

3/5-axis machining center BAZ 2000

verticalwith fixed tablegantry

The BAZ 2000 is a compact, flexible CNC work center for production of kitchen countertops, bathroom vanities, shower pans and large wash basins. It is available in a bridge configuration with multiple table options or as a compact monoblock, and is equipped with Siemens CNC control and industrial components.

Key features

• Primary applications: kitchen countertops, bathroom vanities, shower pans and large wash basins.
• Machine concepts: bridge version (multi-table possible) and compact monoblock version.
• Siemens CNC control for process integration and reliability.
• Unlimited number of tool positions in bridge/multi-table configuration.
• Optional fully automatic suction cup positioning for unmanned loading/unloading and conveyor-line integration.
• Support for automation: automatic tool measuring and automatic workpiece thickness measurement.

Options

• Automated suction cup positioning (fully automatic)
• Multi-table (bridge) configuration
• Optional spindle tilting ±3° for drain-board/drip-edge machining
• Automatic tool measurement and automatic workpiece thickness measurement

Characteristics / Technical specifications

• Work area: 3600 x 1800 mm
• Electro-spindle power: 9–15 kW
• Speed range: 500–10,000 rpm
• Spindle carriage travel: 3900 mm
• Bridge travel: 2000–10,000 mm
• Vertical travel (Z): 400–800 mm
• Electronic grinding pressure control: included
