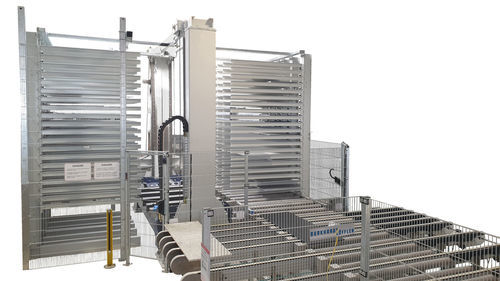

Vertical automatic storage system ASR 80

for warehousefor long itemscompact

Product overview
The ASR 80 is a compact automated high-bay racking system for efficient storage and automated retrieval of workpieces in production environments. It uses a lifting platform with four telescopic forks that extend on both sides to load and unload two opposite cantilever racks automatically, optimizing floor space and simplifying maintenance.

Functional highlights

• Lifting platform with 4 telescopic forks extendable on both sides for automated insertion and removal of workpieces.
• Automatic operation of two opposite cantilever racks for efficient bidirectional storage and provision.
• Designed to handle a wide range of workpiece formats with flexible shelf loading and retrieval.

Options

• Storage software
• Interface for Production and Materials Management
• Integration with existing handling technology

Technical specifications

• Workpiece capacity: 80 pieces
• Workpiece size max.: 3,300 mm x 1,550 mm
• Workpiece size min.: 600 mm x 40 mm
• Max. conveying time per workpiece: 60 s
• Max. load carrying capacity per rack: 450 kg
• Rack height: approx. 4,500 mm
