Automatic sheet metal loader

The automatic loading station provides a fully automatic solution to load raw panels into processing machines. It combines an exchangeable A-frame for vertical stacking and a vacuum loader that transfers panels horizontally to the machine, enabling flexible and efficient production flow.

Operation

• Exchangeable A-frame stacks raw panels vertically and secures them with a fixing aid.

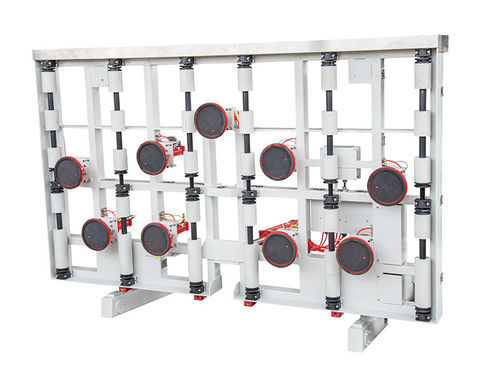

• The automatic vacuum loader lifts panels into a horizontal position, travels on a track to the processing machine and transfers panels via electrically driven rollers.
• Modular, controllable vacuum suction cups allow the autoloader to handle different panel sizes for flexible automation.

Options

• Galvanized loading frame
• Stainless steel cover plates

Technical specifications

• Vacuum loader size: approx. 3,000 x 1,800 mm
• Minimum panel length: approx. 1,200 mm
• Minimum panel width: approx. 600 mm
• Design: exchangeable A-frame for vertical stacking of raw panels with fixing aid
