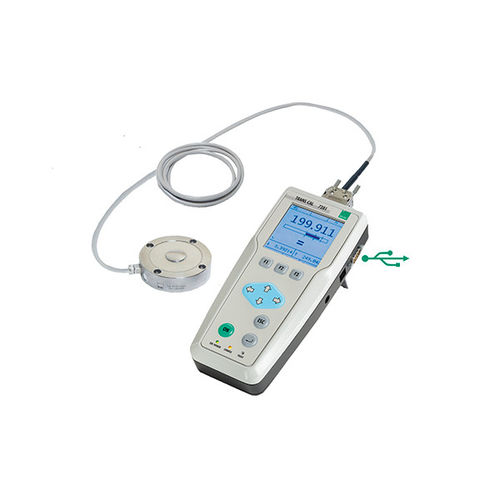

Compression force sensor 72-REF

compression force sensor
compression force sensor
Add to favorites
Compare this product


Rated force

Max.: 100,000 N

Min.: 20 N


The force measuring chain is an universal reference measuring chain for the calibration of press-fit force measuring equipment. It finds applications in the quality assurance, commissioning and equipment monitoring fields. A DAkks calibration certificate is included so that the force measuring chain can be traced back. The calibration is traceable through accreditation at the German Accreditation Body. The calibration certificate records the displayed values for mounting positions at 0°, 120° and 240°. During calibration in field, the reference load cell is inserted in line with the flux of the press-fit measuring equipment. The force application is of central significance here for the quality of the measurement. Special force application parts are required, so that the line of action of the force agrees as exactly as possible with the geometrical axis of the load cell that is to be measured (central loading). It is, furthermore, very important that neither transverse forces nor torques reach the load cell. A sensor with the option “burster TEDS” allows easy configuration of the used measuring chain, without values have to be entered manually. Thus, fast and simlpe, different sensors can be operated on TRANS CAL 7281 and the respective configuration is not necessary. The TRANS CAL 7281 is a portable high-precision calibration and test instrument suitable for load cells based on strain-gauge technology. Thanks to the low error tolerance the display device is particularly suitable where high accuracy is required. The tare function allows any base load that may be present to be cancelled out.
