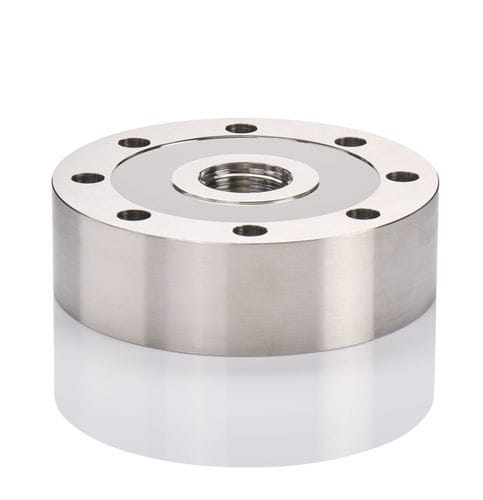

Tension load cell 8525

canisterstrain gaugehigh-precision

The high-precision flat profile force transducer Type 8525 is versatile and suitable for demanding static and dynamic tensile and compressive applications due to its flat design. The internal structure and the two additional support membranes mounted below and above the actual measuring element make the sensors less sensitive to lateral forces or moments. - Measuring ranges from 0 ... 10 kN to 0 ... 200 kN - Linearity deviation 0.1% - Very robust against lateral forces due to support membranes - Protection class IP65 - 6-wire configuration - Type: 8525 - Force direction: Tensile and compressive - Protection class: IP65 - Load centering plate: Optional - Load introduction button: Optional - Operating temperature range: -30 ... +80 °C
