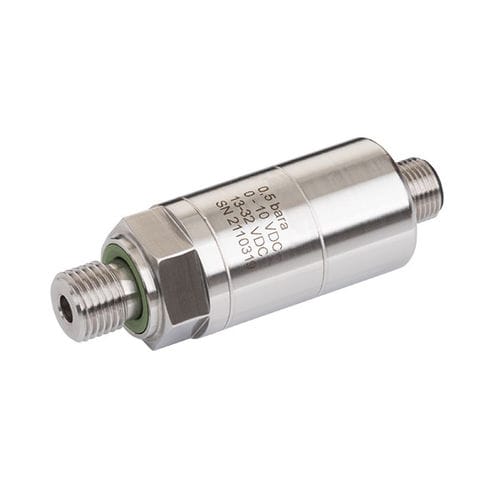

Relative pressure transmitter 8228

absolutemembraneanalog

HIGH PRECISION PRESSURE TRANSMITTER - 8228 The sensor model 8228 with its measuring accuracy of 0.05% F.S. (for the measuring ranges ≤ 1 bar, the measuring accuracy is 0.1% F.S.) ideally suited as a reference sensor. The compact dimensions, the robust housing and the industrial-grade output signal result in a very wide range of applications. All components in contact with media are made of stainless steel. An integrated measuring amplifier converts the measuring signals directly into interference-free voltage signals or current signals that can be transmitted over long distances. With the „gage“ measurement type, the pressure measurement is carried out against the ambient pressure, the sensor has a bore that is protected against ambient influences to compensate for the ambient pressure. With the „Absolute“ measurement type, the applied pressure is measured against an enclosed vacuum; this measurement type is available from the measuring range 0 ... 250 mbar. The electrical connection is made via an M12 x 1 connector. FEATURES: Measurement ranges of 0 ... 0.1 bar to 0 ... 200 bar Accuracy from 0.05 % F.S. Built-in amplifier with output 0 ... 10 V Temperature range -20 ... +80 °C Protection class IP67
