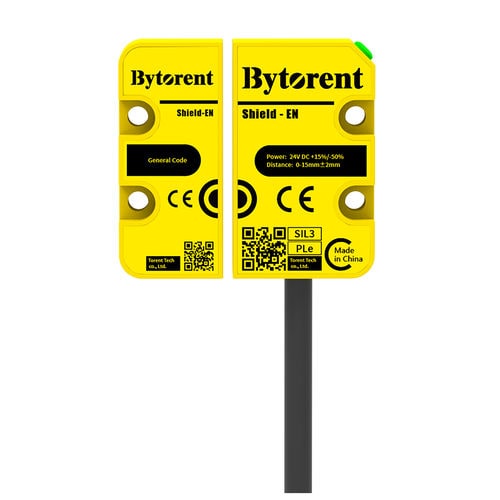

Magnetic switch Shield-ENQQM20L-3mmultipoleharsh environmentsIP69K
Add to favorites
Compare this product
Characteristics
- Number of poles
- multipole
- Protection level
- harsh environments, IP69K
- Other characteristics
- LED, magnetic, safety, compact
- Width
17.5 mm
(0.7 in)- Height
114.5 mm
(4.5 in)
Description
Shield-EN series non-contact safety switch is specially designed and developed for compact application, it can be used to monitor various safety doors, safety windows and motion safety components.
Designed according to ISO13849 and GB/T16855 and other related standards, and meets the requirements of functional safety standards
24VDC, magnetic type with 2 sets of 300mA transistor PNP synchronous output
Bright LED indication, clearly shows the current status
Support parallel or serial use
IP69K protection level, suitable for various harsh environments
