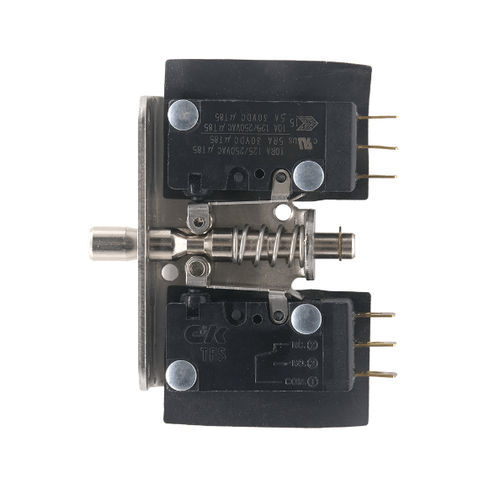

Snap-action switch SL series
SPSTDPDTdust-proof

snap-action switch
snap-action switch
snap-action switch
Add to favorites
Compare this product


Characteristics

Number of poles
SPST, DPDT
Protection level
dust-proof, rugged, for harsh environments, rugged, heavy-duty, IP67
Mounting
panel mount, threaded
Other characteristics
industrial, AC, sealed, DC, maintained, snap-action, interlock
Primary current

0.1 A, 10 A

Voltage

30 V, 250 V

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

SL series is a sealed heavy duty interlock switch perfect for outdoors and harsh environment applications. It offers with 0.187"quick connect terminal or potted 12 inches (304.8 mm) wire long and IP67 rated. FEATURES AND BENEFITS • IP67 rated encapsulated wires version • Threaded or non-threaded plunger • Dust tight for the quick connect terminal version • From 0.1A to 10A max. / AC or DC Voltage • Push (MOM) / pull motion (maintained) • Excellent sealed solution for harsh or outdoors applications • Ruggedize design for door detect applications (harsh environments) TYPICAL APPLICATIONS • Industrial food equipment • Industrial enclosures • String converters • Test lab equipment • Panel builders SPECIFICATIONS Contact Rating: 0.1A @ 125/250 VAC or 30VDC; 3A @ 125/250 VAC or 30VDC; 6A @ 125/250 VAC or 30VDC; 10A @ 125/250 VAC or 5A@ 30VDC Electrical Life: 10 000 cycles @ 10mA; 100 000 cycles @ 3A Insulation Resistance: 100 MΩ min. Operating Temperature: –40ºC to 85ºC Dielectric Strength: Min 500VAC (50-60Hz)/minute between Live Parts

Catalogs

SL Series
SL Series
4 Pages
