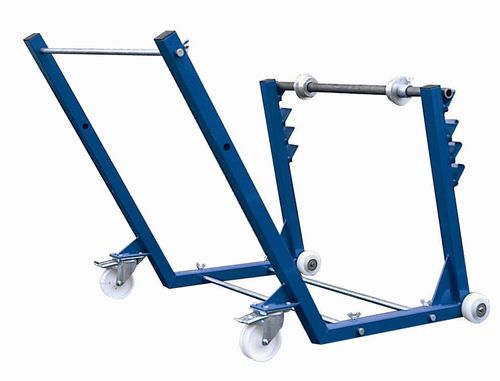

Cable drum unwinder ST2
mobilewith shaft

Cable drum unwinder - ST2 - CABLE EQUIPEMENTS - mobile / with shaft
Cable drum unwinder - ST2 - CABLE EQUIPEMENTS - mobile / with shaft
Add to favorites
Compare this product
Go to the CABLE EQUIPEMENTS website for more information

Characteristics

Type
cable drum
Other characteristics
mobile, with shaft
Roll diameter

Max.: 1,400 mm
(55.12 in)

Min.: 900 mm
(35.43 in)

Roll width

Max.: 800 mm
(31.5 in)

Min.: 0 mm
(0 in)

Description

A trolley and unwinder at the same time Very flexible unwinding thanks to the aluminum centering devices (78 mm Ø), which rotate around a steel shaft (Ø 35 mm) An additional shaft + 2 centering pin set, supplied with the device, can be ordered in order to preequip other drums and therefore make the loading process faster (code ST1-ST2-XAXE) For drums - Ø 900 à 1.400 mm - maximum width 800 mm - total weight 450 kg Frame dimensions : l 87 x P 1.150 x H 950 mm Overall weight : 34 kg Optional measuring devices: - M20 cables max Ø of 20 mm metal wheel (code ST1-ST2-M20-ALU) - M20 cables max Ø of 20 mm polyurethan wheel (code ST1-ST2-M20-PU) - M35 cables max Ø of 35 mm metal wheel (code ST1-ST2-M35-ALU) - M35 cables max Ø of 35 mm polyurethan wheel (code ST1-ST2-M35-PU) Cutting plier option For cables max. Ø 25 mm, attached with a chain (code ST1-ST2-XCC) Code ST2
