Coil unwinder AXO 1000
spoolmanualground-mounted

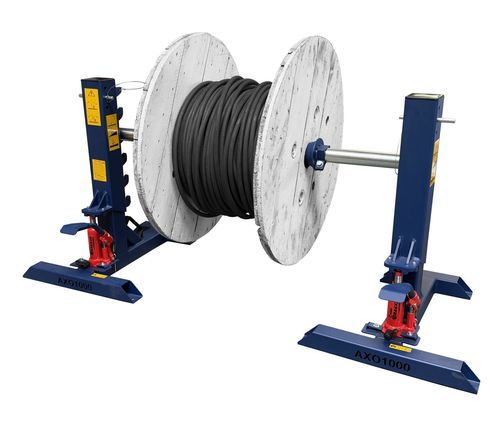

Coil unwinder - AXO 1000 - CABLE EQUIPEMENTS - spool / manual / ground-mounted
Coil unwinder - AXO 1000 - CABLE EQUIPEMENTS - spool / manual / ground-mounted
Coil unwinder - AXO 1000 - CABLE EQUIPEMENTS - spool / manual / ground-mounted - image - 2
Coil unwinder - AXO 1000 - CABLE EQUIPEMENTS - spool / manual / ground-mounted - image - 3
Coil unwinder - AXO 1000 - CABLE EQUIPEMENTS - spool / manual / ground-mounted - image - 4
Coil unwinder - AXO 1000 - CABLE EQUIPEMENTS - spool / manual / ground-mounted - image - 5
Coil unwinder - AXO 1000 - CABLE EQUIPEMENTS - spool / manual / ground-mounted - image - 6
Coil unwinder - AXO 1000 - CABLE EQUIPEMENTS - spool / manual / ground-mounted - image - 7
Add to favorites
Compare this product
Go to the CABLE EQUIPEMENTS website for more information

Characteristics

Type
coil, spool
Operation
manual
Other characteristics
ground-mounted, with shaft, for hydraulic applications, for heavy loads
Associated function
winding
Roll diameter

Min.: 500 mm
(19.69 in)

Max.: 1,200 mm
(47.24 in)

Roll width

Min.: 0 mm
(0 in)

Max.: 1,000 mm
(39.37 in)

Roll weight

Min.: 0 kg
(0 lb)

Max.: 1,000 kg
(2,204.62 lb)

Description

Overview
1 tonne hydraulic reel stands (pair)

Application
The AXO 1000 is designed for unwinding reels on site or in workshops. It consists of 2 stands and a Ø 48 mm shaft with centering devices.

For reel
  • Diameter: 500 to 1200 mm
  • Maximum width: 1000 mm
  • Maximum weight: 1 t

Main features
  • Foot-operated pump
  • Shaft with self-lubricating plain bearing on each side and conical centering devices
  • Easy to move thanks to a handle on each stand
  • Steel with epoxy finish, blue

Dimensions and weight
  • Dimensions of one stand: L 650 x W 400 x H 1360 mm
  • Weight per stand: 71.5 kg
  • Total weight: 188 kg

Installation
Positioned in front of the winder machine; floor mounting mandatory.

Reference
Code EAX010-10N

Technical specifications
  • Load capacity: 1 t
  • Shaft Ø: 48 mm
  • Number of stands: 2
  • Centering devices: conical
  • Bearing: self-lubricating plain bearing each side
  • Pump: foot-operated pump
  • Material: steel with epoxy finish
  • Color: blue
  • Dimensions per stand (L x W x H): 650 x 400 x 1360 mm
  • Weight per stand: 71.5 kg
  • Total weight: 188 kg
  • Suitable for reels diameter: 500–1200 mm
  • Maximum reel width: 1000 mm
  • Mounting: floor fixed mandatory (in front of winder machine)
