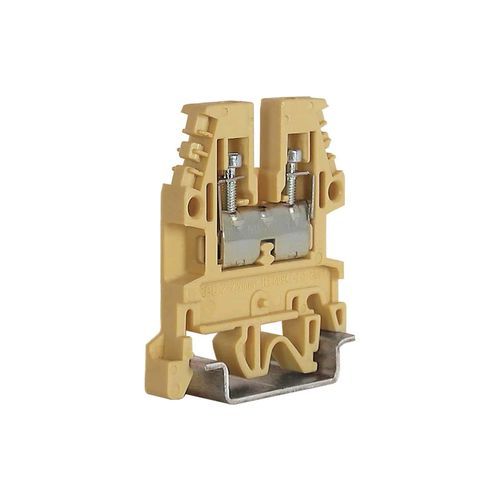

Screw connection terminal block CBDplastic
Add to favorites
Compare this product
Characteristics
- Connection
- screw connection
- Other characteristics
- plastic
- Cross-section
Max.: 70 mm²
(0.11 in²)Min.: 2.5 mm²
(0 in²)- Current
24 A, 32 A, 41 A
- Nominal voltage
690 V, 1,000 V
Description
Compact dimensions
Mounting on PR/3 sec. IEC 60715 rails, TH/35 type
Rated voltage: 1000 V
Maximum continuous operating temperature: 130°C
Dual option for inserting multipolar parallel bridges without the need for additional insulating protection, thanks to the patented “Easy Bridge” (PTC) system and the new “Easy Bridge Plus” (PTP)
Available in colors: gray and blue. For other available colors, refer to the individual versions
Easy Bridge System
The bridge can be supplied in “standard” sizes for 2, 3, 5, or 10 poles, or as bars with a length of 250 mm.
Bridges can also be used to connect in parallel terminals of the same cross-section with the first terminal of the next group having a different cross-section.
Mounting on PR/3 sec. IEC 60715 rails, TH/35 type
Rated voltage: 1000 V
Maximum continuous operating temperature: 130°C
Dual option for inserting multipolar parallel bridges without the need for additional insulating protection, thanks to the patented “Easy Bridge” (PTC) system and the new “Easy Bridge Plus” (PTP)
Available in colors: gray and blue. For other available colors, refer to the individual versions
Easy Bridge System
The bridge can be supplied in “standard” sizes for 2, 3, 5, or 10 poles, or as bars with a length of 250 mm.
Bridges can also be used to connect in parallel terminals of the same cross-section with the first terminal of the next group having a different cross-section.
