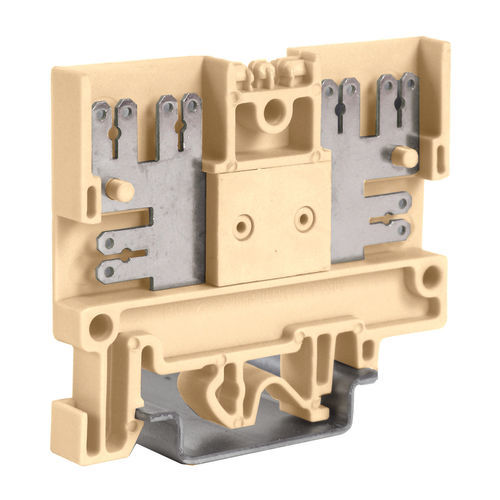

DIN rail-mounted terminal block PF100

feed-throughplasticbeige

Short description
Feed-through terminal block with flat (Faston) connections, 6 poles, beige. Terminals 6.3×0.8 mm and 2.8×0.8 mm (according to IEC 61210). Pack quantity: 75 pcs.

Key features

• Feed-through design with Faston/flat plug terminals
• Terminal dimensions: 6.3×0.8 mm and 2.8×0.8 mm (IEC 61210)
• Pitch (width): 6.5 mm
• Rated cross-section: 2.5 mm² (flexible < 2.5 mm²)
• Pack quantity: 75 pcs per pack
• Mounting on IEC 60715/TH35 rails (TH35 / G32 compatible)

Additional information
Product type: PDF.2; Series: PDF – FDP; Colour: Beige; Plastic: Polyamide UL94V-0; Insulation material temperature index: 130 °C; Length: 57 mm; Height mounted on TH35-7.5 / TH35-15 / G32: 50 / 58 / 54 mm.

Technical specifications

• Code: PF100
• Function / Type: Feed-through with Faston connections
• Rated cross-section: 2.5 mm²
• Flexible wire: < 2.5 mm²
• Maximum voltage (AC/DC): 630 V (IEC); 600 V (UL)
• Maximum current (rated cross-section): 20 A (IEC); 16 A (UL)
• Section (min-max) (AWG): 20–10
• Pitch (width): 6.5 mm
• Length: 57 mm
• Height on TH35-7.5 / TH35-15 / G32: 50 / 58 / 54 mm
• Insulation material temperature index (EN 60216-1): 130 °C
• Plastic material: Polyamide UL94V-0
• Thickness: 1.5 mm
• Rated impulse withstand voltage / pollution degree: 6 kV / 3
• Coloured partition plate (accessory): DFU/5/R (code DU05R)
• Single marking tag (accessories): CNU/8/51 (code NU0851S) – CNU/10/61 (code NU1061S)
• TH35 screw type (accessory): BT/3 (code BT003)
• TH35 snap-fit types (accessories): BTO (code BT007) / BTU (code BT005)
• Mounting rail (IEC 60715/TH35): PR/3/…
• HS code: 85369010
• Approvals and markings: CURUS, KEMA, RINA
