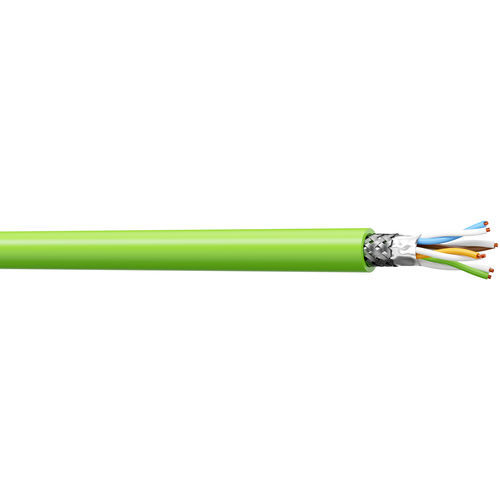

Electrical data cable SFU1004PUR

Ethernetflame-retardantcopper

CAT5E rigid AWG24/1 4-pair cable intended for industrial Ethernet applications. Double general shielding by tinned copper braid and aluminium strip. Polyurethane sheath for harsh environments. SF/UTP CAT5E Ethernet cable, polyurethane sheath, is used for restrictive applications in industrial environments, with mechanical and chemical hazards. It is suitable for industrial links requiring flexibility and its double shielding of tinned copper braid and aluminium strip gives it excellent electromagnetic immunity. It is useful for industrial Ethernet networks up to 1Gbit/s. OBSO_Dynamic radius of curvature - 8x diamétre câble OBSO_Static radius of curvature - 15x diamétre câble Performance category - Category 5E Test frequency (MHz) - 100 Type of assembly - Pairs Characteristic impedance (Ohms) - 100 Type of shielding - S/FTP Diameter on insulation (mm) - 102.0000 Component Standard - IEC 61156-6 Cat5E System Standard - EIA/TIA 568-C.2 Cat5E, EN 50173-1: 2011 Classe D, ISO / IEC 11801 Ed3 Class D Type of outer sheath - PUR Reaction to fire - IEC 61034-1 / IEC 60332-1 / IEC 60754-7
