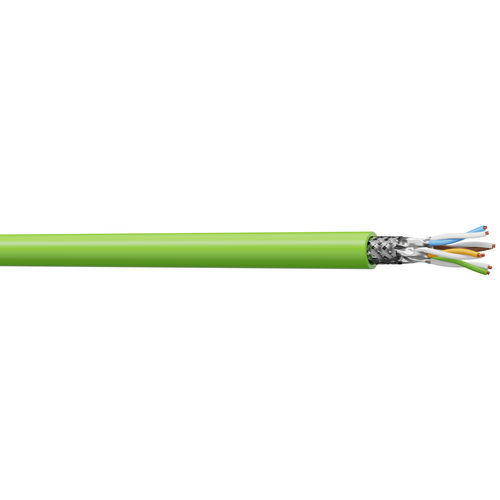

Electrical data cable SF6004PUR

Ethernetcoppernetwork

CAT7 rigid AWG23/1 4-pair cable intended for industrial Ethernet applications. General shielding by tinned copper braid and individual shielding of pairs by aluminium strip. Polyurethane sheath for harsh environments. S/FTP Cat.7 Ethernet cable, polyurethane sheath, is used for restrictive applications in industrial environments, with chemical hazards. Its double shielding, overall shielding with tinned copper braiding and individual aluminium strip shielding provide excellent electromagnetic immunity. Suitable for industrial Ethernet networks up to 10Gbit/s and power supplies up to 4PPoE. Performance category - Category 7 Test frequency (MHz) - 600 Type of assembly - Pairs Characteristic impedance (Ohms) - 100 Type of shielding - S/FTP Diameter on insulation (mm) - 140.0000 Component Standard - IEC 61156-5 Cat7 System Standard - EIA/TIA 568-C.2 Cat6, EN 50173-1: 2011 Classe E, ISO 11801 Ed.3 Classe E Type of outer sheath - PUR Reaction to fire - IEC 61034-1 / IEC 60332-1 / IEC 60754-5 Core type - Solid Copper Core Section - AWG23
