Electrical data cable SFU100XP4PUREthernetflame-retardantmulti-strand
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- data
- Format
- Ethernet
- Protection
- flame-retardant
- Configuration
- multi-strand
- Core material
- copper
- Applications
- network
- Material of the insulation
- PUR, polyester
- Other characteristics
- flexible, category 5e
- Temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description

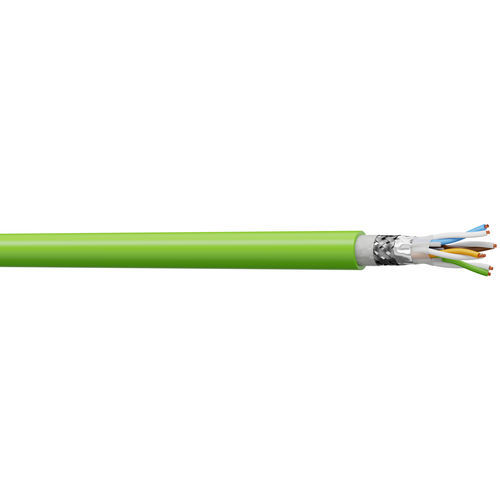

CAT5E extra-flexible AWG26/19 4-pair cable intended for industrial Ethernet applications. Double general shielding by tinned copper braid and aluminium strip. Polyurethane sheath for harsh environments.
SF/UTP CAT5E Ethernet cable, polyurethane sheath, is used for restrictive applications in industrial environments, with mechanical and chemical hazards. It is suitable for industrial links requiring flexibility and its double shielding of tinned copper braid and aluminium strip gives it excellent electromagnetic immunity. It is useful for industrial Ethernet networks up to 1Gbit/s.
OBSO_Dynamic radius of curvature - 8x diamétre câble
OBSO_Static radius of curvature - 15x diamétre câble
Performance category - Category 5E
Test frequency (MHz) - 100
Type of assembly - Pairs
Characteristic impedance (Ohms) - 100
Type of shielding - S/FTP
Diameter on insulation (mm) - 90.0000
Component Standard - IEC 61156-6 Cat5E
System Standard - EIA/TIA 568-C.2 Cat5E, EN 50173-1: 2011 Classe D, ISO / IEC 11801 Ed3 Class D
Type of outer sheath - PUR
Reaction to fire - IEC 61034-1 / IEC 60332-1 / IEC 60754-8
Catalogs
SFU100XP4PUR
1 Pages
