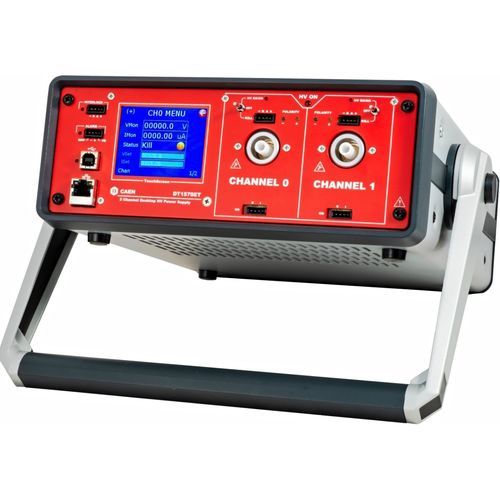

I/O power supply module DT1570ET

2 independent channels in a Desktop case (110/220V AC Powered) 15 kV / 1mA output range Max channel power: 10W (10kV) Channels with individually selectable positive or negative polarity LEMO HV coaxial output connectors Common floating return Low Ripple Under/over-voltage alert, overcurrent and max. voltage protection Interlock logic for board enable and Individual channel kill 20 nA Current monitor resolution (with x10 Imon-Zoom: 2 nA) 2.8″ color touch screen display Local and Remote control (USB2.0/Ethernet) Daisy-chain capabilty Software Tools for easy channel management Overview The DT1570ET provides 2 independent High Voltage channels in a desktop package (110/220V AC Powered). Each channel can provide a ± 15 kV max voltage, 1 mA max current and a 10 W max power. The output polarity is independently selectable for each channel. Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through Lemo HV connectors. The HV output Ramp-up and Ramp-down rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 20 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 2 nA. Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB or Ethernet, taking advantage of the new GECO2020 Control Software. A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.
