AC/DC power supply R8031multiple-outputadjustablesingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- multiple-output, adjustable
- Network
- single-phase
- Connection
- with USB outlet
- Mounting
- rack-mount
- Input voltage
110 V, 220 V
- Output voltage
Max.: 100 V
Min.: 0 V
- Current
10 mA
- Power
1 W
Description

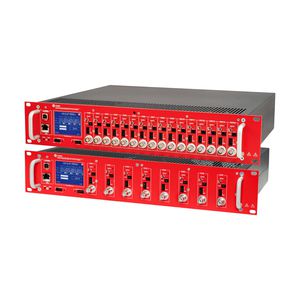

8-16 Channel 100 V / 10 mA 19'' Power Supply Module (USB/Ethernet/Touchscreen)
Features
• 8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered)
• 100 V / 10 mA output range
• Channels with either positive or negative polarity
• BNC coaxial output connectors
• Temperature probe input
• Low Ripple
• Under/over-voltage alert, overcurrent and max. voltage protection
• Interlock logic for board enable and Individual channel kill
• 50 nA current monitor resolution (with x10 Imon-Zoom: 5 nA)
• 2.8″ color touch screen display
• Local and Remote control (USB2.0/Ethernet)
• Software Tools for easy channel management
