Function generator DT5800

pulsedual-channel

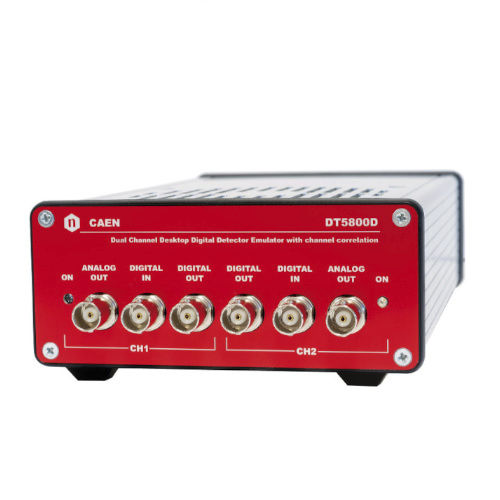

The CAEN Mod.DT5800 is a Dual Channel Detector Emulator, an instrument for emulating in real time signals from generic setups for radiation detection, which can be operated as Desktop units. It shares the same functionalities as the NDT6800 and can operate in three modes: Pulser Mode, Emulation Mode and Waveform Generator Mode. The output generated by the device can go up to 2 V (4 V in case of high Z) and the maximum pulse rate is 10 Mcps (5 Mcps in Poisson statistics mode). In the detector emulator operating mode, the system is able to emulate with high accuracy a radiation detection system from the detector output to its related front-end electronics. The user can program different emulation parameters like signal shape distributions, energy spectra, time distribution, as well as noise characterization and baseline drift. Thanks to the 12 ps/step delay generator they are particularly suited for timing application. Moreover, the multiple shapes capability can be used for pulse shape discrimination applications. The two channels can be correlated either with the same or different statistical distributions. Operating modes: • PULSER Classic pulser operation. The system allows to set the signal amplitude, the signal rate, and to choose between constant and Poisson distributed rate. • DETECTOR EMULATOR In the detector emulator operating mode, the system is able to emulate with high accuracy a radiation detection system from the detector output to its related front-end electronics. The user must provide: the signal shape distribution, the required energy spectrum, the time distribution, the noise characterization, and the baseline drift.
