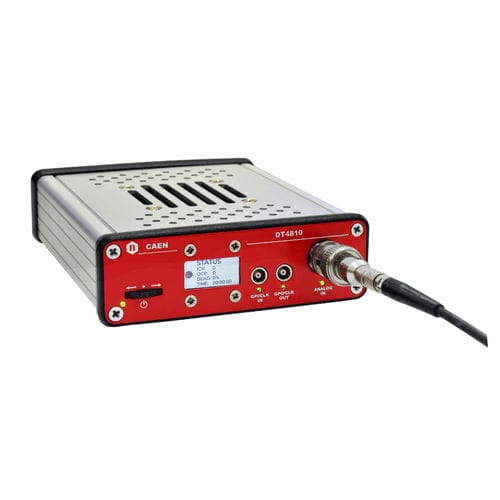

Signal generator DT4810

functionmicrowavepulse

• Emulation of detector-like signals • 500 MSps 14-bit DAC • Analog output rise time down to 5 ns and exponential signal decay time up to 200 us • Nuclides database with more than 50 real acquired spectra • White noise, random walk and continuous reset preamplifier emulation • USB 2.0, 1 Gbit Ethernet • Web-based GUI • Standalone basic operation through the front panel display • Supported by Sci-Compiler for custom firmware programming • SciSDK library for software development • Improved output signal quality • SiPM detector emulation • Sci-Compiler for firmware programming • User-friendly web interface for control and visualization • JupyterLab support for Python scripting Overview Explore the results of our study to upgrade the DT4800 signal generator with improved performances at affordable rate! The CAEN Mod.DT4810 is your entry-level gateway to the Detector Emulator range, strategically designed for compactness, ease of use, and single-channel operation. Say goodbye to outdated hardware – we’re upgrading with the latest Xilinx SoCs. No more software hassles – enjoy a web-based control interface accessible via Ethernet and USB2. No installations required! Improved performance – now generating signals at up to 500 MSps for high quality outputs with reduced harmonic content. Upgrade your lab equipment with the power of innovation. Don’t miss out – stay ahead with the new DT4810 Signal Generator.
