gas, for air, for inert gases, for oxygen, for nitrogen, for CO2, for hydrogen
Technology
piston
Number of stages
single-stage
Material
brass
Applications
industrial, high-pressure, for medical applications, welding, for laser, cutting
Other characteristics
for high flow rates, rugged, CE certified
Pressure
Max.: 40 bar (580.15 psi)
Min.: 0 bar (0 psi)
Flow
Max.: 700 m³/h (24,720.27 ft³/h)
Min.: 0 m³/h (0 ft³/h)
Orifice diameter
0.5 in
Temperature
Max.: 60 °C (140 °F)
Min.: 0 °C (32 °F)
Description

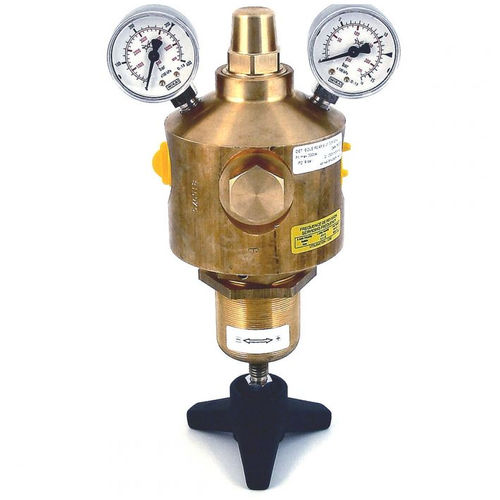

CYLINDER AND LINE HIGH FLOW
Maximal inlet pressure (bar) : - 300
Outlet pressure (bar) : - 0 - 40
Standard discharge (nm3/h) : - 700
Gas compatibility : - Non corrosive gas + O2
