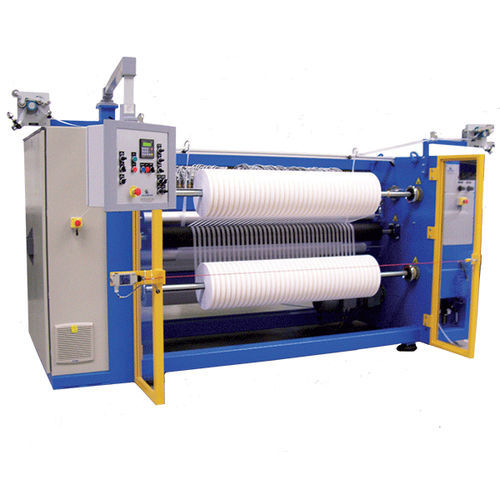

Textile slitting machine Athena, Vega, Orion, Tucana, Centaure, Astrée

rollautomatic

Modular Slitter Rewinder for Textiles & Technical Textiles | Calemard

Founded in 1955 to serve the ribbon converting industry, Calemard has become a long-established specialist in textile slitter rewinders. Decades of expertise have enabled us to support the evolution from conventional fabrics to advanced technical textiles, continuously adapting our web converting machines to meet the increasingly demanding requirements of modern textile materials.

Our complete range of flexible and versatile textile slitting machines delivers outstanding cutting quality, consistent roll winding and increased production efficiency.

Available modular slitter-rewinder configurations

• Centre winding textile slitter-rewinder : The ideal balance between performance and investment, designed for high productivity (Athena / Vega)
• Centre surface winding textile slitter-rewinder : Perfect for winding large diameters of narrow strips of sensitive fabrics (Orion / Tucana), or for converting jumbo rolls into narrow finished rolls (Centaure)..
• Compact Mini textile slitter-rewinder : Specifically designed to convert secondary rolls into narrow tapes or tubes of sensitive textile materials (Astrée).

Slitting Technologies & Edge Sealing Solutions
Every textile behaves differently during converting. Our machines are compatible with multiple slitting technologies to deliver clean cuts and fray-free edges.

• Hot knife slitting (thermal cutting) – The preferred solution for synthetic textiles, simultaneously cutting and sealing the edges to eliminate fraying.
• Ultrasonic slitting– Advanced technology producing perfectly sealed edges without burning nor overthickness, particularly valued for medical textiles such as gauze and nonwovens.
• Razor blade cutting– Ideal for films, lightweight nonwovens and selected coated materials.
• Crush cutting (rotary knives on hardened steel anvil roll) – Highly efficient for thicker materials or high-speed converting.
• Shear cutting (intermeshing rotary knives) – Recommended for technical textiles and upholstery fabrics requiring superior edge quality.

Whatever the selected cutting technology, our textile slitting machines produce finished rolls with uniform winding tension, excellent edge quality and reliable downstream processing.

Technical Specifications & Performance
Center Winding Slitter Rewinders (Athena / Vega)

• Parent roll width: 1,800–3,400 mm
• Parent roll diameter: 400–1,200 mm
• Finished roll diameter: up to 1,000 mm
• Maximum speed: 100 m/min
• Minimum slit width: 10 mm

Surface Winding Slitter Rewinders (Orion / Tucana / Centaure)

• Parent roll width: 2,200–3,000 mm
• Parent roll diameter: 800–1,300 mm
• Finished roll diameter: up to 1,300 mm
• Maximum speed: 250 m/min
• Minimum slit width: 15 mm

Compact Mini Slitter Rewinder (Astrée)

• Parent roll width: up to 500 mm
• Parent roll diameter: up to 500 mm
• Parent roll weight: up to 25 kg
• Finished roll diameter: up to 500 mm
• Finished roll weight: up to 15 kg
• Maximum speed: 30 m/min
• Minimum slit width: 6 mm

Textile Applications
Our textile converting machines process a wide range of fabrics and narrow web materials, including:

• Medical gauze and compression textiles
• Filtration media
• Vertical blind fabrics
• Ribbons and labels
• Scarves and flags
• Upholstery fabrics

Looking for a textile slitting solution?
Contact our technical team to design the textile slitter rewinder that perfectly matches your production requirements.
