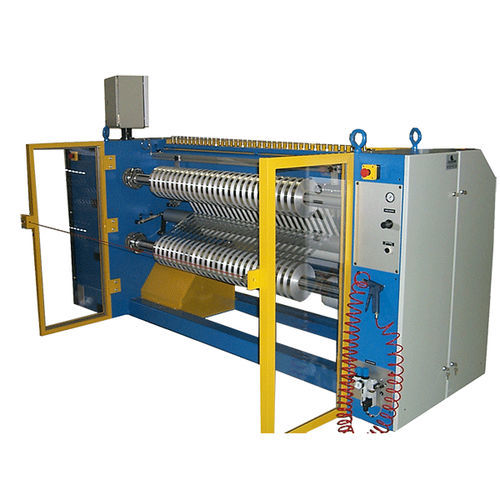

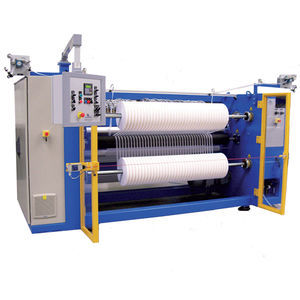

Automatic slitter-rewinder Vega, Athena, Orion, Alpha

compactmodularhigh-speed

Duplex Slitter-rewinders for plastic films, adhesive tapes and technical materials | Calemard

Our multi-purpose slitter-rewinders are engineered for high-speed precision slitting of sensitive flexible materials, ensuring excellent tension stability and superior edge quality.
Thanks to staggered rewinding stations, our machines guarantee optimal roll separation, clean cuts, consistent roll formation and minimal material waste across all production conditions.

Our range of slitting machines is suitable for processing narrow web or wide web of::

• Plastic films (packaging and technical films)
• Pressure-sensitive adhesive (PSA) tapes
• Composite and multilayer materials
• RFID films and holographic materials
• Aluminum foil
• Technical and specialty substrates

Thanks to its modular design and multiple configuration options, our slitting machines can be precisely adapted to production requirements ranging from short production runs to high-volume industrial converting.

SLITTER REWINDER CONFIGURATIONS
Center winding slitter-rewinder: General-purpose converting with cost-efficient operation
Flexible and cost-efficient solution for a wide range of plastic film and adhesive tape applications.
Ideal for general-purpose slitting operations with reliable performance and easy operation.

Center surface winding slitter-rewinder: Precision slitting for thin and sensitive materials
Designed for high-precision converting of sensitive materials and for producing large-diameter rolls of narrow widths.
Ensures excellent tension control and improved winding stability for thin films and technical substrates.

TECHNICAL CHARACTERISTICS
Center Winding configuration

• Mother roll width: up to 2,200 mm
• Mother roll diameter: up to 1,200 mm
• Finished roll diameter: up to 600 mm
• Speed: up to 200 m/min
• Minimum slit width: 10 mm

Center Surface Winding configuration

• Mother roll width: up to 3,000 mm
• Mother roll diameter: up to 1,200 mm
• Finished roll diameter: up to 800 mm
• Speed: up to 200 m/min
• Minimum slit width: 10 mm

INDUSTRIAL CONVERTING PERFORMANCE

• High-precision slitting for sensitive plastic films and adhesive tapes
• Advanced web tension control throughout the process
• Excellent edge quality with reduced burr and dust generation
• High winding accuracy and roll consistency
• Reduced material waste and improved production efficiency
• Flexible configurations for different production requirements
• Suitable for both narrow web and wide web converting
• High-speed operation up to 200 m/min
• Designed for continuous and automated production environments

APPLICATIONS

• Flexible packaging film converting
• Industrial and specialty adhesive tapes
• Electrical insulation materials
• RFID and smart label materials
• Holographic and security films
• Automotive interior and technical components
• Cable and wire protection materials
• Flooring and construction materials
• Electronics and industrial flexible substrates

MULTI-MATERIAL CONVERTING EXPERTISE
Our slitter rewinders are part of a long-standing expertise in web handling and web converting technologies and trusted by global manufacturers in multiple industrial sectors:

• Plastic films and flexible packaging
• Technical textiles and nonwovens
• Adhesive and coating-based materials
• Rubber and industrial substrates
• High-performance technical webs

With over 65 years of experience in industrial converting technologies (founded in 1955), Calemard supports manufacturers worldwide in high-precision slitting and rewinding applications.

Our commitment to quality and industrial performance is reinforced by internationally recognized certifications:

• ISO 9001 certified company (Quality Management System)
• ISO 45001 certified company (Occupational Health & Safety Management)
• EcoVadis Silver Medal (CSR performance assessment)

Looking for a Slitting Solution?
Contact our technical team to design a tailored slitter rewinder solution adapted to your material, production speed and converting requirements.
