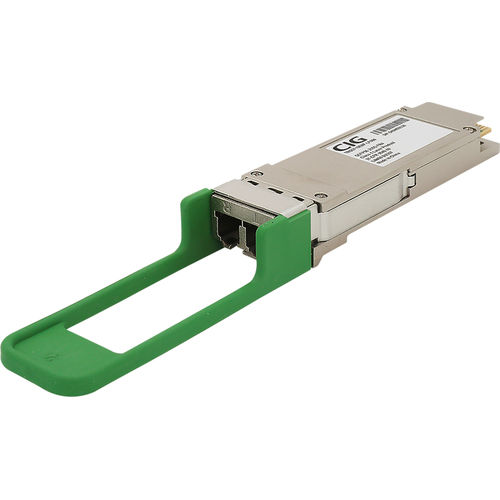

Gigabit Ethernet transceiver 200G

dataQSFP+

CIG has a complete optical transceiver product portfolio for data center and 5G wireless applications covering various form factors, reaches and speeds to meet fast-growing networking needs. With a rich, decades-long technology heritage in optical transceiver design and more than 15 years of experience in volume manufacturing, CIG is well positioned to provide customers highest value products and services to meet their demands. Features -200 Gigabit Ethernet (212.5 Gbit/s) Transceiver -Aggregate data rate of 212.5 Gbit/s -Optical Interface: Compliant to 26.5625 GBd PAM4 x 4 CWDM wavelength 200GBASE-FR4 -Electrical Interface: Compliant to 26.5625 GBd PAM4 x 4 lane 200GAUI-4 -Reach: Up to 2 km over duplex single mode fiber -Form Factor: Compliant to QSFP+ 28Gb/s 4X Pluggable Transceiver Specification (SFF-8665) -Optical Transmitter: CWDM EA-DFB -Optical Receiver: PIN photodetector -Power consumption: 6 W max -Operating case temperature: 0 to 70 deg C -Size (W x L (with pull tab) x H): 18.4 mm x 72 (122) mm x 8.5 mm (not including pull tab) -Hot Z-Pluggable to 38-pin electrical connector -Latching mechanism: Pull tab -Management Interface: Two-wire common management interface -Environment: RoHS10 (2011/65/EU + 2015/863) compliant Application For data center, enterprise and telecom applications
