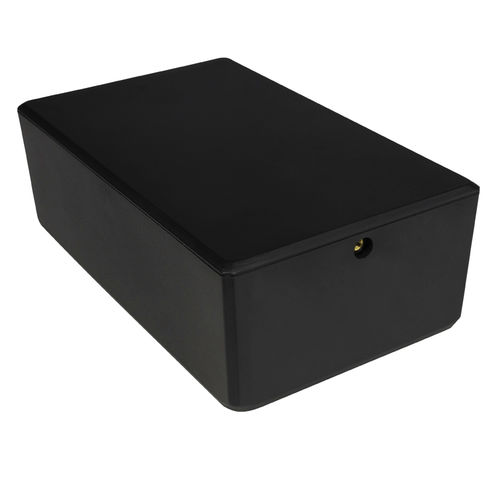

Electronics enclosure CBEAC-03-BK
wall-mountbuilt-infor DIN rail

electronics enclosure
electronics enclosure
electronics enclosure
electronics enclosure
electronics enclosure
electronics enclosure
electronics enclosure
Add to favorites
Compare this product


Characteristics

Construction
wall-mount, built-in, for DIN rail
Configuration
rectangular
Material
ABS
Application
industrial, electronic equipment, indoor, for instrumentation, electronics, for general purposes, for controllers, for printed circuit boards, for sensors, workstation
Protection level
UL, IK06, robust, IP40
Other characteristics
design, with lid, cast
Width

80 mm
(3.1 in)

Height

45 mm
(1.8 in)

Description

CBEAC-03-BK - EASY ASSEMBLY ELECTRONICS ENCLOSURE, SIZE 3, 130X80X45MM, BLACK Moulded in black UL94-V0 ABS and manufactured in the UK, the Easy Assembly Electronics Enclosure is designed for universal electronic devices. Achieve fast assembly with the dual action lid and drop fit PCB position. Edge to edge PCB maximises the internal space and allows any face to be used. Unique dual action lid is held in place by either a push-button clip or a single screw No corner pillars, providing maximised PCB footprint with edge-to-edge capability PCB edge corner supports in the base with four additional half board supports which can be removed to make way for solder points on the bottom of the PCB Unique spring feature in lid holds your PCB securely in place without the need for screws, greatly improving assembly time In conjunction with the spring feature in the lid, the 'easy assembly' ledge holds the PCB in place without the need for screws, for quick and easy assembly Premium quality universal enclosure with cost saving assembly design features Robust 2.5mm thick walls moulded in UL94-V0 ABS material with smooth finish to aid customisation and modification Designed and manufactured in the UK DIN rail and wall mount accessories available Available in black, white and grey External Length (mm) - 130 External Width (mm) - 80 External Height (mm) - 45 Internal Length (mm) - 121.5 Internal Width (mm) - 71.5 Internal Height (mm) - 41 Weight (G) - 107 Base Material - Plastic Material Type - ABS UL94-V0 Colour - Black UL Rating - UL94-V0 IK Rating - IK06 IP Rating - IP40 Brand - CamdenBoss Development Board - N/A Wall Thickness (mm) - 2.5
