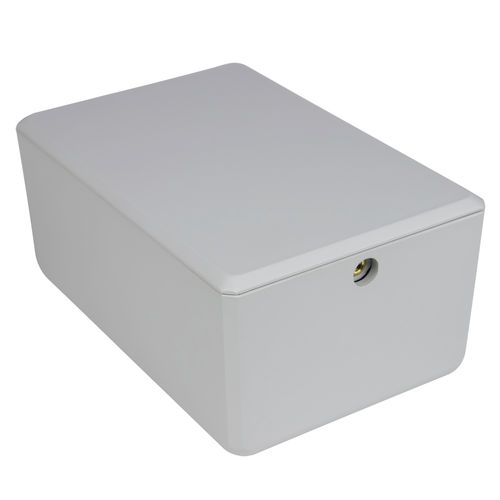

CBEAC-01-GY - EASY ASSEMBLY ELECTRONICS ENCLOSURE, SIZE 1, 90X60X40MM, GREY
Moulded in grey UL94-V0 ABS and manufactured in the UK, the Easy Assembly Electronics Enclosure is a general purpose enclosure providing fast assembly using the dual action lid and drop fit PCB position. Edge to edge PCB maximises the internal space.
Unique dual action lid is held in place by either a push-button clip or a single screw
No corner pillars, providing maximised PCB footprint with edge-to-edge capability
Multiple PCB mounting points in base and lid, along with PCB edge corner supports in the base
Unique spring feature in lid holds your PCB securely in place without the need for screws, greatly improving assembly time
In conjunction with the spring feature in the lid, the 'easy assembly' ledge holds the PCB in place without the need for screws, for quick and easy assembly
Premium quality universal enclosure with cost saving assembly design features
Robust 2.5mm thick walls moulded in UL94-V0 ABS material with smooth finish to aid customisation and modification
Designed and manufactured in the UK
DIN rail and wall mount accessories available
Available in black, white and grey
External Length (mm) - 90
External Width (mm) - 60
External Height (mm) - 40
Internal Length (mm) - 82
Internal Width (mm) - 52
Internal Height (mm) - 36
Weight (G) - 61
Base Material - ABS
Material Type - ABS UL94-V0
Colour - Grey
UL Rating - UL94-V0
IK Rating - IK06
IP Rating - IP40
Brand - CamdenBoss
Development Board - N/A
Wall Thickness (mm) - 2.5
