Electronics enclosure CBEAC-04-WH

wall-mountbuilt-infor DIN rail

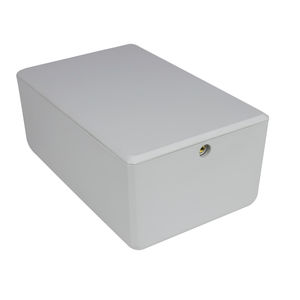

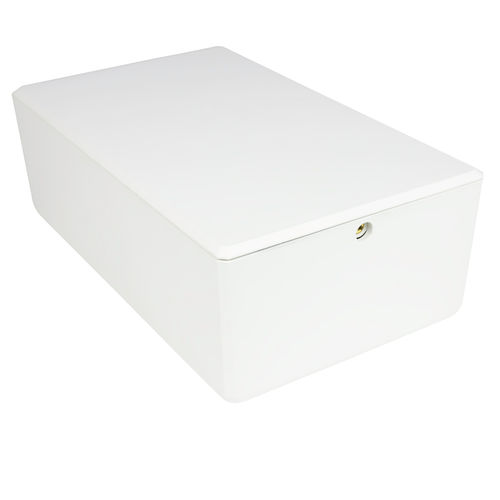

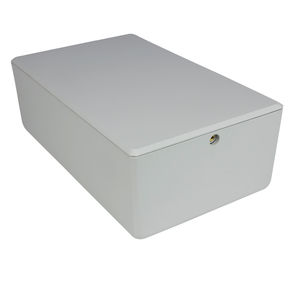

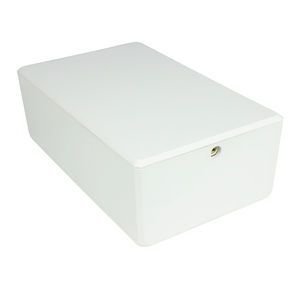

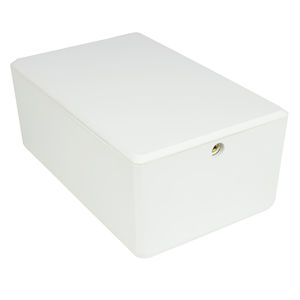

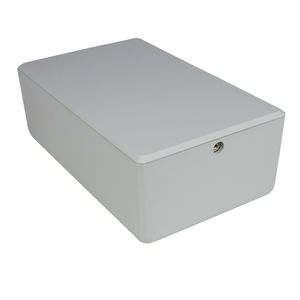

CBEAC-04-WH - EASY ASSEMBLY ELECTRONICS ENCLOSURE, SIZE 4, 150X90X50MM, WHITE Moulded in white UL94-V0 ABS and manufactured in the UK, the Easy Assembly Electronics Enclosure is a premium cost-effective enclosure solution. Achieve fast assembly and maximise your PCB with edge to edge capability. Unique dual action lid is held in place by either a push-button clip or a single screw No corner pillars, providing maximised PCB footprint with edge-to-edge capability PCB edge corner supports in the base with four additional half board supports which can be removed to make way for solder points on the bottom of the PCB Unique spring feature in lid holds your PCB securely in place without the need for screws, greatly improving assembly time In conjunction with the spring feature in the lid, the 'easy assembly' ledge holds the PCB in place without the need for screws, for quick and easy assembly Premium quality universal enclosure with cost saving assembly design features Robust 2.5mm thick walls moulded in UL94-V0 ABS material with smooth finish to aid customisation and modification Designed and manufactured in the UK DIN rail and wall mount accessories available Available in black, white and grey External Length (mm) - 150 External Width (mm) - 90 External Height (mm) - 50 Internal Length (mm) - 144 Internal Width (mm) - 83 Internal Height (mm) - 46 Weight (G) - 128 Base Material - Plastic Material Type - ABS UL94-V0 Colour - White UL Rating - UL94-V0 IK Rating - IK06 IP Rating - IP40 Brand - CamdenBoss Development Board - N/A Wall Thickness (mm) - 2.5
