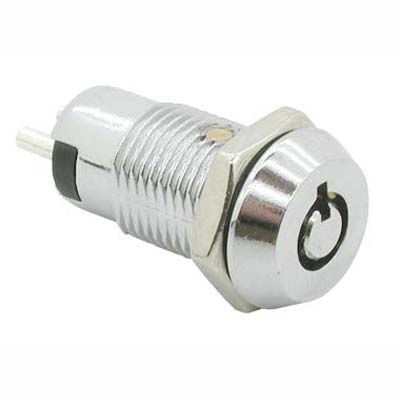

Key lock switch S13D series

single-poleminiatureelectromechanical

The high quality switchlock in this series is for use in applications that require limited space, as well as a certain level of security, normally associated with a radial pin tumbler mechanism offering no less than 200 key combinations. The competitive price is possible because of the die-cast alloy core and housing. The body length of 20mm makes this product excellent for electrical and electronic cabinets. The series S13D switchlock comes with a rotation of 90 degrees and one or two keys with a polished chrome finish. The item is also supplied with a body nut and two keys for every lock. In order to make this item compliant with CE regulations, the switchlock has been rated at less than 50 volts for alternating current and under 75 for direct current. Note that a brass version is also available for this product.
