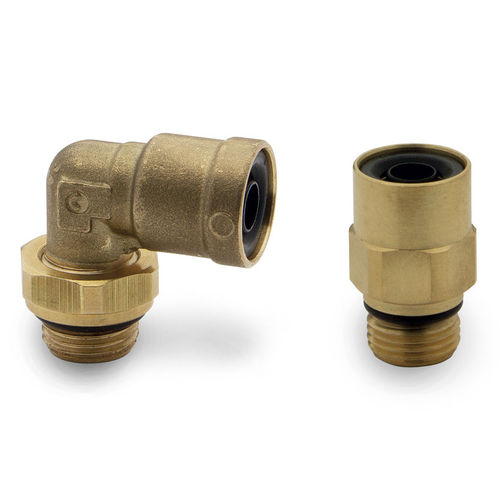

Brake system fitting 9000 series
for compressed airpush-inT

brake system fitting
brake system fitting
brake system fitting
Add to favorites
Compare this product


Characteristics

Applications
for compressed air
Attachment
push-in
Configuration
T, elbow, Y
Norms
ISO, DIN, BSP, BSPT
Gender
male-female
Other characteristics
compact, for brake systems
Diameter

Min.: 4 mm
(0.157 in)

Max.: 14 mm
(0.551 in)

Operating pressure

16 bar
(232.06 psi)

Description

Tube external diameters: 4/2; 6/4; 8/6; 10/7; 10/7,5; 10/8; 12/9; 15/12; 16/12; 18/14; mm Fittings threads metric cylindrical: M10x1; M12x1,5; M14x1,5; M16x1,5; M18x1,5; M22x1,5 BSP GAS: G1/8; G1/4 Conical: 1/8 NPTF; 3/8 NPTF Series 9000 fittings have been designed to connect tubing according to DIN 74324 or ISO 7628 in the pneumatic brake systems of commercial vehicles. They offer excellent reliability and ease of assembly. The range includes a very compact release tool for disconnecting tubes from the fittings. The tube interface is shielded by a rubber cap for protecting the internal parts against dirt and water ingress. The integrity level of the interface concept, even during disassembling, is outstanding. The Series 9000 offers a smart portfolio of different types of connectors. Depending on the demands of our customers, we are also ready to provide customized solutions. Series 9000 fittings are TÜV certified and produced according to IATF 16949:2016 standards.
