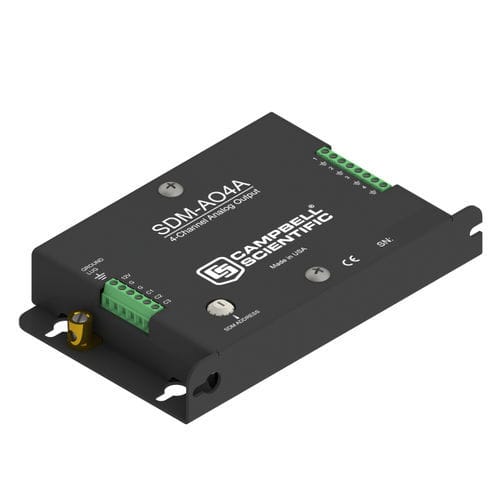

Analog output module SDM-AO4A

4-channel

The SDM-AO4A module increases the number of continuous analog outputs available to a datalogger. These outputs are used for proportional control or driving strip charts. Benefits and Features - Increases the number of CAO ports available to the data logger - Supports both ±5 V and 0 to 10 V modes, allowing the module to be used in more applications - Includes a choice of synchronous and sequential operation The SDM-AO4A is designed to output four continuous voltages at levels set by a Campbell Scientific data logger. The data logger enables individual modules through an addressing scheme; multiple SDMs (in any combination) can be connected to one data logger. After a module is enabled, it operates independently of the data logger until additional commands are received or results are transmitted. The SDM-AO4A can be operated in ±5 V mode or 10 V mode. In each of these modes, the SDM-AO4A can operate synchronously or sequentially. In synchronous mode, all channels are set at the same time.
