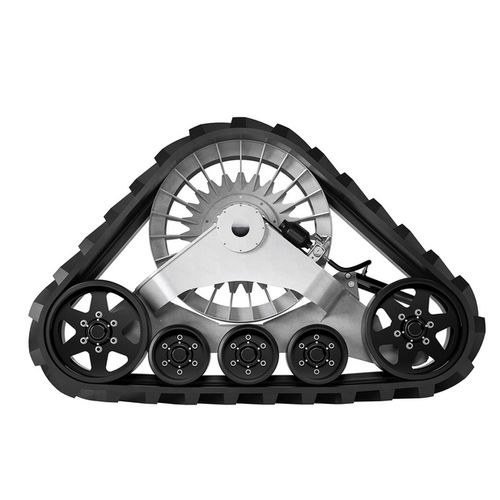

Rubber track CTS Standard T23A

Overview
Conversion track system for agricultural machines designed to improve field access and stability on soft ground. Available in multiple OEM configurations and 762 mm / 914 mm track widths.

Key attributes

• Speed: 60%
• Flotation: 70%
• Ride quality: 5%

Features

• Main frame: Suspended upper and lower frame design with rubber isolation — resulting in smoother ride and reduced wear on equipment and operators.
• Suspension: Patented double oscillating bogie wheels that improve ground contact on uneven terrain to enhance power transfer, machine stability and header placement.
• Track: Large footprint offering over 65% reduction in ground pressure to increase mobility on soft ground conditions.
• Wheels: Heavy-duty wheel hubs with oil-bath lubrication; no greasing or repacking of bearings required — simplifies maintenance operations.
• Hydraulic tensioning system: Maximizes tractive performance and maintains optimal sprocket-to-lug contact to extend track life; system includes nitrogen-charged accumulator.

Table - Available configurations (metric units shown)
Brand | Track Width (mm) | Height (mm) | Length (mm) | Track System P/N
Case | 762 | 1689 | 2685 | 30T23A
Claas | 762 | 1689 | 2685 | 30T23A
John Deere | 762 | 1689 | 2685 | 30T23A
New Holland | 762 | 1689 | 2685 | 30T23A
Case | 762 | 1689 | 2685 | 30T23A - REVERSE
New Holland | 762 | 1689 | 2685 | 30T23A - REVERSE
John Deere | 762 | 1661 | 2690 | 30T23AN
Case | 914 | 1689 | 2685 | 36T23A
Claas | 914 | 1689 | 2685 | 36T23A
John Deere | 914 | 1689 | 2685 | 36T23A
New Holland | 914 | 1689 | 2685 | 36T23A
Case | 914 | 1689 | 2685 | 36T23A - REVERSE
Massey Ferguson | 914 | 1689 | 2685 | 36T23A - REVERSE
New Holland | 914 | 1689 | 2685 | 36T23A - REVERSE


Usage notes
Conversion track system engineered for superior stability and improved field access on soft soils. Designed to increase machine mobility, improve header placement for harvesting operations and extend track life through optimized tensioning and reduced ground pressure.

Technical specifications

• Product family / Model: CTS Standard T23A
• Brand: Camso
• Design intent: Improve field access and stability in soft ground
• Main frame: Suspended upper and lower frames with rubber isolation
• Suspension: Oscillating bogie wheels (double oscillating design, patented)
• Track footprint: Large footprint; >65% reduction in ground pressure (compared to tires)
• Wheels: Heavy-duty hubs with oil-bath lubrication; no greasing/repacking of bearings
• Tensioning: Hydraulic tensioning system with nitrogen-charged accumulator
• Performance indicators (illustrative): Speed 60%, Flotation 70%, Ride quality 5%
• Available track widths: 762 mm, 914 mm
• Typical heights/lengths (examples): Heights ~1661–1689 mm; Lengths ~2685–2690 mm (varies by OEM and configuration)
• Typical OEM designations: Case, Claas, John Deere, New Holland, Massey Ferguson
