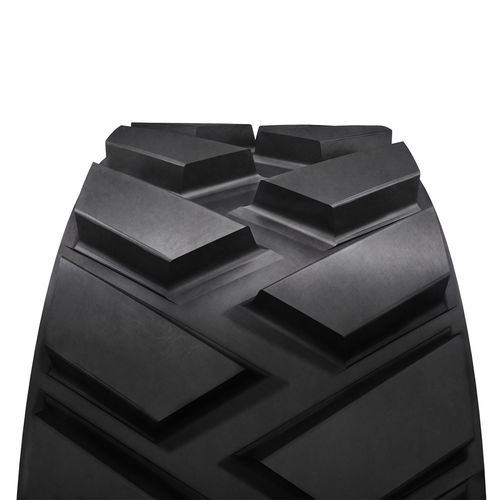

Rubber track AG 4500

Product overview Get into your fields faster with the Camso AG 4500 High Roading Positive Drive agricultural track for Case IH Steiger and Magnum Rowtrac, enabling transport speeds up to 25 mph (≈40 km/h) on narrow tracks and reducing road travel time by up to 16% to increase field productivity.

Key claim Higher roading speeds and engineered durability for sustained uptime in-field and on-road.

Main features

• 4-ply carcass specifically designed for high-speed roading and higher internal temperatures.
• Optimized drive lugs geometry for Case IH Steiger and Magnum Rowtrac drive wheels to maximize power transfer.
• High-roading tread bar with an advanced rubber compound and new tread shape for improved roading performance.
• Manufacturing process reduces carcass material displacement, ensuring uniform tension distribution and minimizing carcass tears.

Performance indicators

• Tread life: 100% (as presented)
• Carcass durability: 100% (as presented)
• Drive lug durability: 100% (as presented)

Specifications (summary) Model | Track Width (mm) | Track Length (mm) | Tread Quantity | Tread Height (mm) | Tread Tip Width (mm) | Tread Pitch (mm) | Drive Lugs Quantity | Carcass Plies | Carcass Main Cable Size | Carcass Thickness (mm)
F16BG03401 | 406 | 6705.6 | 88 | 45.7 | 81.3 | 152.4 | 44 | 4 | 5.4 | 35
F18BG03374 | 457 | 6705.6 | 88 | 45.7 | 81.3 | 152.4 | 44 | 4 | 5.4 | 35
F21BG03413 | 533 | 6705.6 | 88 | 45.7 | 81.3 | 152.4 | 44 | 4 | 5.4 | 35
F24BG03397 | 610 | 6705.6 | 88 | 45.7 | 81.3 | 152.4 | 44 | 4 | 5.4 | 35
F30BG03402 | 762 | 6705.6 | 88 | 45.7 | 81.3 | 152.4 | 44 | 4 | 5.4 | 35

Additional product information Designed for Case IH Steiger and Magnum Rowtrac applications, the AG 4500 combines tread and carcass engineering focused on high-speed roading durability, improved power transfer and reduced downtime.

Technical specifications

• Brand: Camso
• Commercial model name: AG 4500 High Roading Positive Drive
• Intended application: Agricultural tracks for Case IH Steiger and Magnum Rowtrac
• Maximum recommended transport speed on road: up to 25 mph (≈40 km/h)
• Estimated field productivity improvement versus longer road travel: up to 16%
• Carcass: 4-ply carcass for high-roading applications
• Drive lug geometry: optimized for Steiger and Magnum Rowtrac drive wheels
• Tread: high-roading tread bar and advanced rubber compound
• Performance indicators shown on product page: Tread life 100%, Carcass Durability 100%, Drive Lug Durability 100%
