Track CTS

Overview

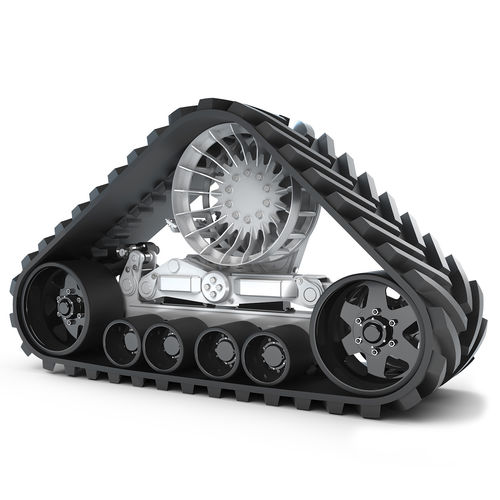

Field-ready bolt-on track conversion for combine harvesters. The CTS High Speed integrates a final drive to enable roading speeds comparable to wheeled combines, while preserving flotation and off-road mobility.

Key benefits

• Higher roading speed for faster transfer between fields
• Reduced ground pressure and improved mobility on soft soils
• Maintenance-friendly wheel hubs with oil-bath lubrication

Features
Integrated final drive

• Allows the combine to achieve speeds of up to 23 mph (≈37 km/h)
• Optimised gear ratio to provide roading performance similar to wheeled machines

Hydraulic tensioning system

• Maximises tractive performance
• Ensures optimum sprocket-to-lug contact to extend track life
• Hydraulic tensioning with nitrogen-charged accumulator

Suspension

• Improves ground contact on uneven terrain to transfer power effectively
• Enhances machine stability and header placement
• Patented double-oscillating bogie wheels for improved ride

Track

• Larger footprint offering over 70% reduction in ground pressure vs. comparable wheels
• Increases mobility on soft ground

Wheels

• Simplifies maintenance operations
• Heavy-duty wheel hubs with oil-bath lubrication
• No greasing or repacking of bearings required

Main frame

• Suspended upper and lower frame design with polyurethane isolation
• Provides smoother ride and reduces wear on equipment and operator fatigue

Specifications table (selected rows)
Brand | Track Width (in) | Height (in) | Length (in) | Track System P/N
Claas | 24 | 63.4 | 113.1 | 24Q17MK1C82-264A
New Holland | 24 | 63.9 | 105.4 | 24Q17MK1N48-252A
John Deere | 25 | 63.1 | 106.1 | 25Q17MK1J46-252A
John Deere | 26 | 63.1 | 113.2 | 26Q17MK1J46-264A
Claas | 30 | 64.7 | 114.3 | 30Q17MK1C82-264A
New Holland | 30 | 63.9 | 105.4 | 30Q17MK1N48-252A
Case | 30 | 65.2 | 107.0 | 30Q17MK1N48-252A
Deutz-Fahr | 36 | 63.4 | 105.9 | 36Q17MK3C48-252A

Technical specifications

• Product: CTS High Speed (bolt-on combine track system with integrated final drive)
• Top roading speed capability: up to 23 mph (≈37 km/h)
• Hydraulic tensioning: nitrogen-charged accumulator
• Suspension: patented double-oscillating bogie wheels improving ground contact and stability
• Track footprint: >70% reduction in ground pressure vs. comparable wheels
• Wheels: heavy-duty hubs with oil-bath lubrication; no greasing/repacking of bearings
• Main frame: suspended upper and lower frame with polyurethane isolation for improved ride and reduced wear
• Performance indicators: Speed 100%; Flotation 80%; Ride quality 80%
• Multiple OEM-fit sizes and part numbers available (see specifications table above for examples)
