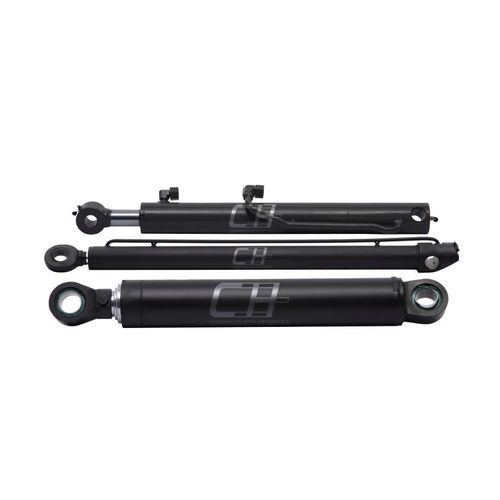

Hydraulic cylinder tie-rodtelescopicdouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- tie-rod, telescopic
- Configuration
- double-acting, single-acting
- Applications
- industrial, for lifting applications, for agricultural machinery, for construction equipment, for materials handling
- Other characteristics
- compact, precision, threaded, custom, welded
- Stroke
Max.: 10,000 mm
(393.701 in)Min.: 0 mm
(0 in)- Bore
Max.: 600 mm
(23.62 in)Min.: 40 mm
(1.57 in)- Pressure
Max.: 600 bar
(8,702.26 psi)Min.: 0 bar
(0 psi)
Description
We design and manufacture high quality custom hydraulic cylinders exclusively in our plants using cutting edge technology with utmost precision. We are one of the leading manufacturers in making hydraulic cylinders for construction equipment like boom pumps, mobile hydraulics like garbage compactors, material handling equipment like reach stackers, mining equipment like universal drilling machines, agriculture and forestry equipment like combine and harvesters and earth moving equipment like Excavators.
Our Expertise:
- Single Acting Cylinders
- Double Acting Cylinders
- Multi Stage Telescopic Cylinders
Types of Construction:
- Tie rod
- Welded
- Threaded
- Heavy duty Bolted
Range of Manufacturing:
- Bore Size: ⌀40 mm to ⌀600 mm
- Stroke Length: up to 10,000 mm
- Working Pressure: up to 600 bar
