Stroke : 0.5 m - 18 m
Force: 20 kN - 200 kN
Speed: 200,000 mm/s
The LinkLift is an electromechanical telescopic actuator specifically designed for the vertical movement of heavy loads using rigid chain technology. The LinkLift is suitable for lifting heavy loads in industry, scenery ...
Stroke : 1 m - 2.5 m
Force: 12.5, 50, 6.5, 19, 40 kN
Speed: 50 mm/s - 300 mm/s
The HDLift is an electromechanical telescopic actuator specifically designed for the vertical movement of heavy loads using Rigid Chain Technology. It is mainly used in demanding industrial environments. Our “Heavy Duty” ...
Stroke : 1 m - 2 m
Force: 20 kN
Speed: 200 m/s
The ChainLift is an electromechanical telescopic actuator specifically designed for the vertical movement of heavy loads using Rigid Chain Technology. It is mainly used in the industry sector. The ChainLift is used ...
Stroke : 41 mm
Force: 99.7 kN
Single acting, gravity return telescopic cylinder. Supplied with 30 cm connecting hose with anti-kink spring and High Flow female coupler, A 118.
Stroke : 111 mm
Force: 510 kN
Single acting, gravity return telescopic cylinder. Standard with High Flow female coupler A 118 and flat saddle. Standard supplied with: High Flow female coupler A 118 HFJ 10/30 G 4 contains a ...
Force: 58.84 kN - 1,078.73 kN
... spring return SLE cylinders : single acting, with lock nut, spring return SLT cylinders : single acting, telescopic, load return SLC cylinders : hollow piston ...
Stroke : 0 mm - 600 mm
Force: 109 kN - 303 kN
Capacity from 10 to 30 Tn, stroke up to 600 mm. For applications with minimum clearance and high lift required. Load return. Also available in double acting versions DL. Also available in aluminium versions: SLA DLA
Stroke : 300, 700 mm
Force: 39, 36 kN
The new telescopic rams are the first choice when it comes to gain a long movement out of a short tool.Furthermore, both the short and the long version of the telescopic ram can easily be equipped with ...
Stroke : 184 mm - 450 mm
Force: 614 kN - 1,005 kN
Stroke : 184 mm - 450 mm
Force: 614 kN - 1,005 kN
Stroke : 8 mm - 160 mm

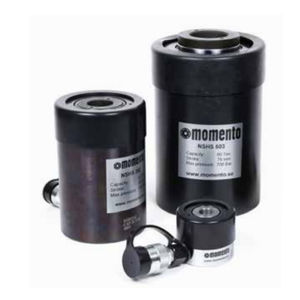

HOLLOW CYLINDERS - NSHS • Capacity from 12-100 tons. • Hard chromed piston rod, cylinder tubes coated with ”nitrokarb”. • Built-in return spring. • Can be used for both pushing and pulling work ...
... Plated) is used for Telescopic Hydraulic Cylinder, and it could application for many place such as the hydraulic mechanism adopted on the garbage trucks, fire rescue engines…etc. If you are interested ...
Stroke : 220 mm
The telescopic cylinder is a special form of a linear hydraulic power unit, which is always used when you need a big stroke but have a limited amount of space for the installation. The multiple piston ...
Stroke : 22,000 mm
Force: 3,000 kN
Telescoping cylinder single and multi-stage, with internal oil supply and lowering brake valves •Load: 300 t •Stroke: up to 22,000 mm •Operating pressure on the ground: 210 bar •Locking unit via the cylinder •Guide ...
Stroke : 720 in
... field proven to ensure long term durability, Ligon Hydraulic Cylinder Group supplies multi-stage hydraulic cylinders of various lengths, and up to six stages. Whether you are looking for a cylinder ...
Stroke : 40.38 in - 89.83 in
Specification:• Adjustable V-packing provides low-pressure and high-pressure sealing• External packing nuts provide added support for tubes and simplify servicing. 2500 PSI Max.• 1/2-14 NPT ports• Polished steelor chromed stages• ...
Stroke : 50 mm - 300 mm
Force: 1,500 N - 6,000 N
Speed: 0.004 m/s - 0.005 m/s
Feature: Input Voltage: 12Vdc / 24Vdc Max Load: 6000N (push) / 4000N (pull) Max Speed: 16.6mm/sec Stroke: 50, 100, 150, 200, 250, 300mm Duty cicle: 10% or 2min continuous operation in 20 min IP protection Level: IP43 Color: Aluminum ...
ND6 The smallest Spiralift model is designed for lighter and shorter lifting requirements. This newest addition to the family provides increased flexibility and versatility in tight spaces. This ND6 comes with an integrated worm ...
... Range of cylinders is designed specifically for Light Tippers and Agricultural Tippers. The max admitted pressure is 220 bars. Quality in every detail Even if engineered with particular attention to dimensions and costs, ...
Stroke : 260 mm
Force: 68 kN - 230 kN

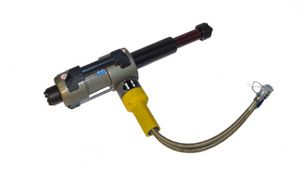

Telescopic Hydraulic Rams Unit is made of hardened high strength light alloy. Can be used in wet conditions. Tool comprises : 1 Double action cylinder 1 Ergonomically shaped control handle ...
Stroke : 390 mm - 2,780 mm
Speed: 0.2 m/s
The item has a cylinder that conforms to the requirements of ISO 6020/2 and can work to a maximum working pressure of 200 bar. The test pressure is slated at 300 bar with the maximum working speed is at 0.2 m/second. The ...
Stroke : 84.02 in - 285 in
... specially designed cylinders offer top notch performance and value with the help of innovative machining and the use of exclusive seals to deliver long service life without the need for any adjustments. Adding to this, ...
... Enzfelder GmbH is a Telescopic electric cylinder which comes with a short fitting height and a long stroke. This tool comes with different stages coming from level 2 up to level 5. This is the ideal tool ...
Stroke : 24 in
This product, which is manufactured by Lift Systems, is a custom hydraulic cylinder. It is available in either single or double-acting with bore diameters ranging from 2 inches, and up to 36 inches with 1/2 inch increments. ...
Stroke : 1,000 mm - 5,600 mm
Telescopic cylinders 3 expansions from 1000 mm to 5600 mm stroke
STERN over the years has acquired a broad knowledge and extensive experience in the design and manufacture any type of telescopic cylinder, depending on the different requirements of customers
Cylinder with holed telescopic piston rod - AX1 / AW1 series
A telescopic cylinder is comprised of several cylinders built inside one another. It is is often constructed in a single-acting form, but is also to be encountered in a double-acting ...
