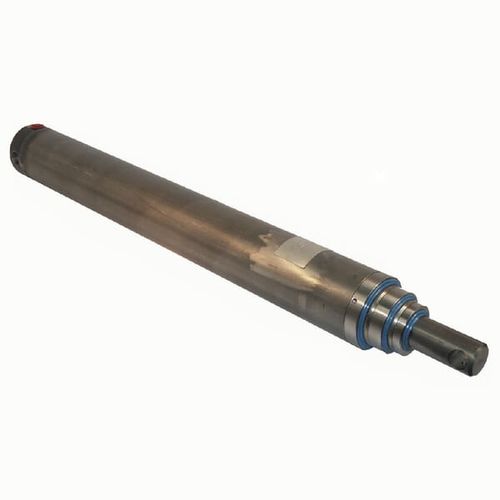

Hydraulic cylinder TC31051993telescopicsteel
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- telescopic
- Material
- steel
- Stroke
1,993 mm
(78.465 in)- Pressure
200 bar
(2,900.8 psi)- Rod diameter
25 mm
(1 in)
Description
Unit
-
Each
-
Long description
-
Telescopic cylinders 3-stage
-
Application category
-
Telescopic
-
Stroke
-
1993 mm
-
Number of stages
-
3
-
Max working pressure
-
200 BAR
-
Max. capacity
-
10 t
-
Max. capacity - stage 2
-
7 t
-
Max. capacity - stage 3
-
4 t
-
BMounting hole diameter - rod connection
-
25.4 mm
-
DMounting hole diameter - cylinder connection
-
25.4 mm
-
ECylinder outside diameter
-
105 mm
-
Piston surface roughness range
-
0.10-0.25 µm
-
AMin mounting distance
-
924 mm
-
Cylinder material
-
Steel ST52
-
Sealing material
-
Polyurethane
-
DIN standard
-
1629
