Pt1000 temperature transducer PT1000CNTIP68for surface temperature measurement
Add to favorites
Compare this product
Characteristics
- Technology
- Pt1000
- Protection level
- IP68
- Applications
- for surface temperature measurement
- Temperature
Min.: -50 °C
(-58 °F)Max.: 105 °C
(221 °F)
Description

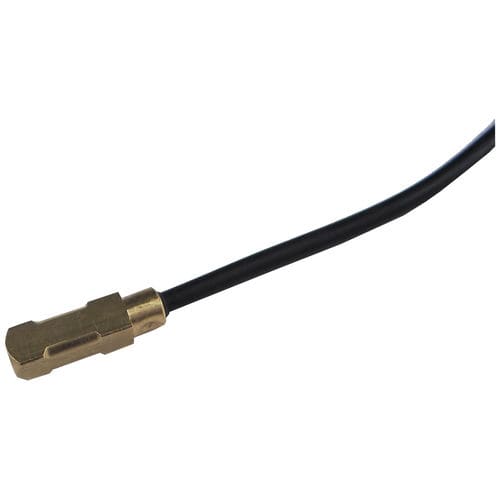

PT 1000 class "A" transducer - Located in quadrangular brass case for contact surface temperature detection - Cable length 3 meters - Measure range from -50 to + 105 ° C.
TECHNICAL DATA
Build up - Brass block for clamp fastening.
Cable - · Cable length: 3m · Material: conductor isolated by polypropylene and secondary insulation in thermoplastic rubber (TPE)
Sensible element - Class “A” PT1000
Dimensions - 18x6x6mm
Insulation resistance - 100 MΩ at 1,000 VDC
Dielectric Stiffness - 3,750 VAC
