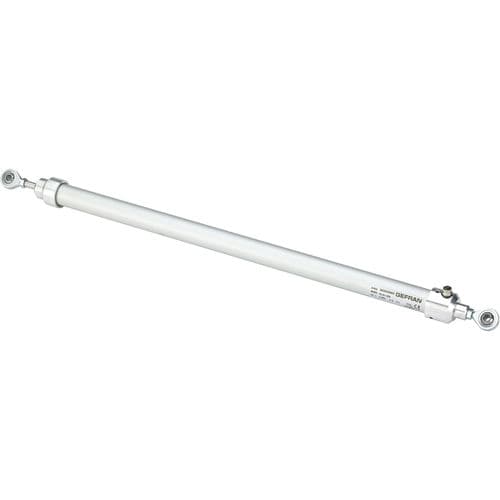

Linear displacement transducer PZ67A-50

potentiometerIP67

Self-aligning rectilinear displacement with IP67 sealing - Provided with 3-pin M8x1 connector - 50mm useful electrical stroke - Fixing on self-aligning ball-joints. TECHNICAL DATA Resolution - Infinite Repeatability - 0.01mm Electrical connection - M8x1 3-pole connector Protection level - IP67 (use M8x1 3-pole female connector with IP67 or higher protection level) Life (NOT used in prolonged immersion) - > 25x10^6m strokes, or > 100x10^6 maneuvers, whichever is less (within C.E.U.) Displacement speed - Standard ≤ 3 m/s max ≤ 5 m/s Displacement force - ≤ 20N Vibrations - 5...2000Hz, Amax =0,75 mm amax. = 20 g Shock - 50 g, 11ms. Acceleration - 200 m/s^2 max (20g) Resistance Tolerance - ± 20% Recommended cursor current - 100MOhm at 500V=, 1bar, 2s
