NTC temperature transducer NTC10KIMIP68watersmall
Add to favorites
Compare this product
Characteristics
- Technology
- NTC
- Protection level
- IP68
- Applications
- water
- Other characteristics
- small, stainless steel, precision
- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description

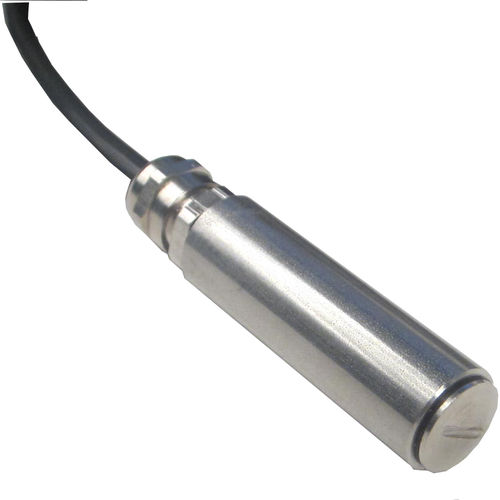

Beta 3977 NTC10K immersible transducer to acquire layer water temperature - The very small sensible element is realized by an AISI303 stainless cylinder and is provided with 20m cable.
TECHNICAL DATA
Build up - AISI303 stainless cylinder
Cable lenght - 20m
Sensible element - NTC10KΩ BETA 3977
Dimensions - ø 16x50mm cap
Accuracy - 0.1°C in whole range
@25°C Temperature coefficient (Alpha) - -4.39%/°C
Beta constant (25/85) - 3,977 ±0,3%
