Security two-hand control SC3x series

capacitivefor touch buttonsIK08

Overview
The SC3x series is the latest generation of CAPTRON safeCAP two-hand controls, successor to the SC4 series. Designed for machines with a high risk of injury (punching machines, presses and similar), it delivers force-free actuation, long service life and standards-compliant safety integration.

Key benefits

• Force-free actuation via capacitive sensor technology — no pressure required, reducing wrist strain; operable with work gloves.
• Highly durable and sealed: fully encapsulated buttons (IP68) protected against water, oil, dust and impacts; wear-free sensor principle for several hundred million cycles; very low maintenance.
• Certified for safety applications (Type III C) and compatible with standard safety PLCs, relays and signal conditioning units.

Features (series)

• Available variants: single-channel (NO) and dual-channel (NO/NC).
• Pin/connector options referenced: 5-pin, 6-pin and 8-pin variants noted depending on model/configuration.
• LED feedback: green (ready), yellow (actuated).
• Certifications: EN ISO 13849-1 (Cat. 4, PLe), EN ISO 13851, IEC 60947-5-1 and applicable EC directives; EC-Type Examination Certificate referenced.

Mounting / Designs

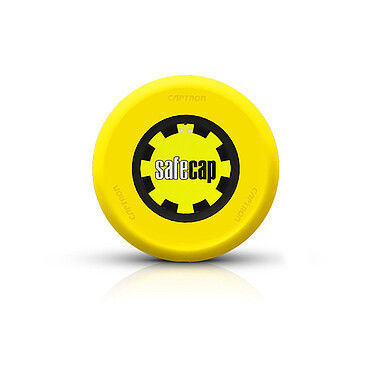

• SC30: Ø 22.5 mm installation hole, Ø 50 mm sensing face when mounted — suitable for quick installation in standard housings.
• SC31: Ø 50–58 mm sensing face with 3-point mounting, flat overall height (7 mm) — for low-profile installations.

Expandable
The SC3x series is modular and can be extended with accessories (protective covers, table mounting panels and other mounting/protection elements) to build norm-compliant two-hand safety solutions.

Products / Application notes

• SC30 (Single Channel): Ø 50 mm sensing face, installs via standard Ø 22.5 mm hole; can be combined with signal conditioning units for two-hand control applications. Typical use: punching, pressing.
• SC30 (Dual Channel): Ø 50 mm switching surface, installs via Ø 22.5 mm hole; compatible with MCR225 and PILZ PNOZ series; TÜV SÜD certified for EN ISO 13849-1 and EN ISO 13851. Typical use: presses, punching machines.
• SC31 (Dual Channel): Ø 50 mm sensing face, flat profile (7 mm); compatible with MCR225 and PILZ PNOZ s6; TÜV SÜD tested. Typical use: punching, pressing and similar.

Technical specifications

• Series / Model: SC3x (SC30, SC31 variants)
• Sensor technology: Capacitive touch sensor — force-free actuation; glove-operable
• Ingress protection: IP68 (fully encapsulated)
• Impact resistance: IK08
• Switching life: several hundred million cycles
• Outputs: potential-free PhotoMOS relay with antivalent NO/NC outputs (as stated)
• Connector/pin versions: 5-pin, 6-pin and 8-pin variants referenced depending on model
• Mounting: SC30 (Ø 22.5 mm mounting hole); SC31 (Ø 50–58 mm sensing face, 3-point mounting, 7 mm installation height)
• LED feedback: green (ready), yellow (actuated)
• Standards / Certifications: EN ISO 13851, IEC 60947-5-1, EN ISO 13849-1 (Cat. 4, PLe), 2006/42/EC; EC-Type Examination Certificate referenced; TÜV SÜD testing/certification for relevant variants
• Compatibility: Compatible with common safety PLCs, safety relays and approved signal conditioning instruments (examples: MCR225, PILZ PNOZ series, Simatic F-CPU)
• Applications: Punching, pressing and industrial machines with high risk of injury
