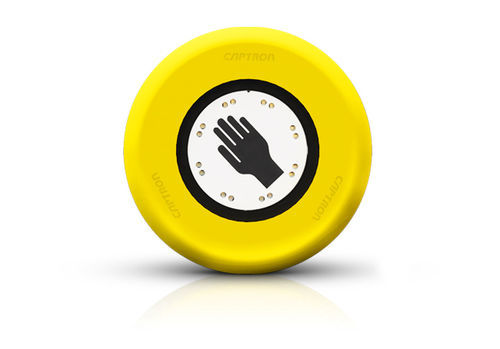

5-wire capacitive touch sensor SL31IP69KIP67
Add to favorites
Compare this product
Characteristics
- Other characteristics
- 5-wire, IP69K, IP67
Description
Description
Key features
Technical data
- Capacitive sensor pushbutton with two complementary potential-free PhotoMOS contacts (NO/NC).
- Ø 50 mm actuation surface.
- Low profile: 7 mm mounting height.
- Mounting via Ø 50–58 mm cut-out and 3‑screw V‑mount fixation.
- Potential-free PhotoMOS relays (NO/NC); maintained switching on actuation.
- No independent approval according to EN ISO 13849-1.
Key features
- Optical feedback: green LEDs (ready), red LEDs (actuated).
- 100% water- and oil-tight front: IP69K; sensor fully potted in special resin.
- M12 connector, 5‑pin.
- Switching behaviour: maintained while actuated.
- Product video available (topic: safe machine operation via two-hand control).
Technical data
- Operating voltage: 24 V DC
- Output: PNP, NO/NC switchable
- Power loss at switching contact: Max. 300 mA
- Load current: Max. 300 mA per switching contact
- On-resistance: < 2.5 Ω
- Switching behaviour: maintained on actuation
- Optical feedback: green LED, red LED
- Connector: M12, 5‑pin
- Ambient temperature: -20°C to +60°C
- Ingress protection: Front IP69K / Rear IP67
- Current consumption: Max. 25 mA at 24 V
- Turn-off delay: Max. 100 ms
- Turn-on delay: Max. 50 ms
- Rated insulation voltage: 32 V
- Actuation area diameter: 50 mm
- Mounting height: 7 mm
- Mounting cut-out: Ø 50–58 mm; 3‑screw V‑mount
