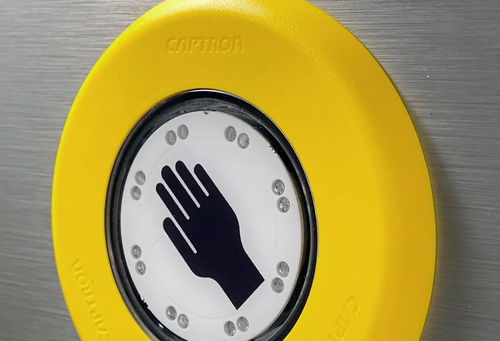

IP69K two-hand control SL3x series

for touch buttonsIK08with push-button

Overview
Two-channel capacitive pushbutton series designed for demanding industrial two-hand control applications. Antivalent, potential-free PhotoMOS relay outputs (NO/NC). Force-free actuation, fully potted construction and operable with work gloves.

Features and benefits

• Capacitive two-channel pushbutton with antivalent, potential-free PhotoMOS relays (NO/NC)
• Force-free actuation for ergonomic and repeatable operation
• Fully potted, oil- and water-resistant (IP69K)
• Very long service life: several hundred million switching cycles
• Impact-resistant, protection class IK08
• M12 5-pin connector

Variants / versions

• SL30: 50 mm actuator diameter; mounting via standard Ø 22.5 mm panel hole
• SL31: 50 mm actuator diameter; panel cutout Ø 50–58 mm with 3-point (V) mounting; only 7 mm build-up height

Additional notes

• Optional accessories such as protectors and desk-mount consoles available for ergonomic and tailored installations
• Suitable for semi-automatic or assisted processes, e.g. punching and pressing operations

Downloads (document types)

• Declarations of conformity (e.g. EC, UKCA)
• Material / environmental compliances (RoHS, REACH)
• Operation manuals (DE, EN)
• Information on machine directives

Technical specifications

• Commercial designation: SL3x (series)
• Outputs: antivalent, potential-free PhotoMOS relays (NO/NC)
• Connection: M12, 5-pin
• Protection rating: IP69K (fully potted)
• Impact resistance: IK08
• Service life: several hundred million switching cycles (wear-free sensing)
• Versions: SL30 (panel Ø 22.5 mm), SL31 (panel Ø 50–58 mm, 3-point mounting, 7 mm build-up)
• Operator sensor: capacitive touch sensor, force-free actuation, operable with gloves
• Target applications: two-hand control in industrial processes (e.g. punching, pressing)
