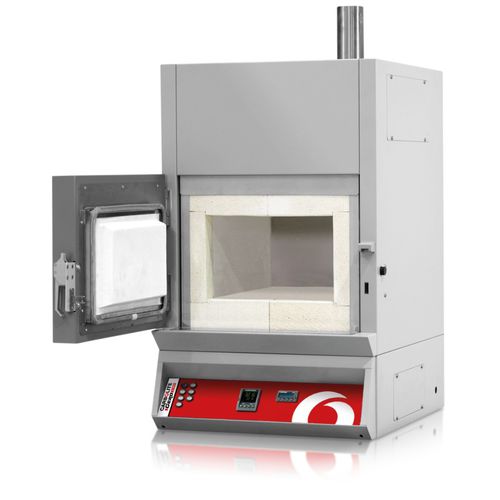

Chamber furnace ABF 8/28

calcinationcombustionprogrammable

The ABF Afterburner Ashing Furnace is particularly suitable for ashing larger samples or materials such as biomass, which are likely to generate substantial amounts of smoke. The furnace comprises a large main combustion chamber equipped as standard with a two tier set of sample baskets. The exhaust from the main chamber is processed through a high temperature afterburner designed to further process fumes and smoke. Standard features Afterburner rated for up to 40 g carbon per ashing load Two tier baskets with loading tray and handle 3216P1 programmable controller Independent control of afterburner temperature up to 950°C Silicon carbide shielded wire wound elements Supplied with 3-phase supply as standard Options (specify these at time of order) Over-temperature protection (recommended to protect valuable contents & for unattended operation) A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications Optional floor stand Technical details Airflow in the ABF 8/28 Ashing Furnace Air inlet – air is preheated before entering the chamber Air inlet into afterburner to ensure complete combustion Air inlet into plenum to cool the gases before entering the extraction fan Chimney Furnace chamber Afterburner Extraction fan Two tier perforated basket system
