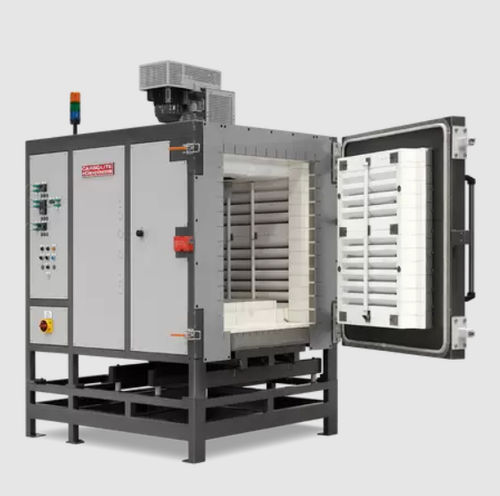

Chamber furnace SBCF series

sinteringheat treatmentelectric

Overview
The SBCF large chamber furnace is designed for industrial heat treatment applications such as heat treatment of steels and alloys, ceramic sintering and aerospace processes. It is a modular, cubic-chamber furnace available in three sizes with either a fixed hearth or an optional bogie hearth for track extraction. The hearth can also be adapted to a vertical lift (elevator hearth) arrangement where the door becomes a fixed side of the chamber.

Standard features

• 1100 °C maximum operating temperature
• 3-zone control fitted with 1 x EPC3008P1 programmable controller and 2 x EPC3016 slave units with setpoint retransmission
• Over-temperature protection
• Furnace can meet the requirements of AMS2750F when specified
• Under-hearth heating plus free-radiating coiled wire elements on four sides
• Excellent temperature uniformity and control
• Robust construction ensures safe outer case temperature
• Double-skin construction ensures safe outer case temperature
• Hard-wearing silicon carbide (SiC) tiled hearth

Options (specify these at time of order)

• Temperature-interlocked door
• Bogie hearth (track extraction)
• Vertical air circulation fan for improved uniformity
• Various instrumentation and data acquisition packages available

Technical characteristics / specifications

• Model name: SBCF
• Maximum operating temperature: 1100 °C
• Chamber shape: cubic
• Chamber sizes: available in three sizes (modular design)
• Hearth: fixed hearth standard; optional bogie hearth for track extraction; option for vertical lift (elevator hearth)
• Hearth surface: silicon carbide (SiC) tiled for wear resistance
• Heating elements: under-hearth heating plus free-radiating coiled wire elements on four sides
• Temperature control: single or 3-zone control; standard 3-zone fitted with 1 x EPC3008P1 programmable controller and 2 x EPC3016 slave units with setpoint retransmission
• Uniformity options: compatible with AMS2750F when specified; optional air circulation fan for improved uniformity
• Safety: over-temperature protection included
• Construction: low thermal mass insulation for efficiency; robust refractory materials in loading/hearth areas; double-skin outer case for low external temperatures
• Applications: heat treatment of steels and alloys, ceramic sintering, aerospace heat treatment and other industrial processes
• Design: modular for adaptation to specific applications and instrumentation/data acquisition options
