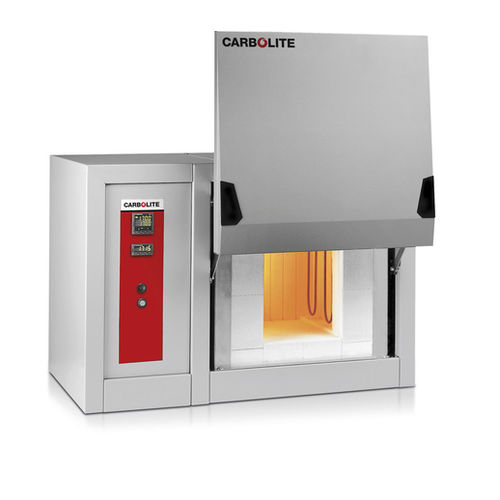

Sintering furnace HTF series
chambercombustionair circulating

sintering furnace
sintering furnace
sintering furnace
Add to favorites
Compare this product


Characteristics

Function
sintering
Configuration
chamber
Heat source
combustion
Atmosphere
air circulating
Other characteristics
laboratory
Capacity

Min.: 4 l (1.1 gal)

Max.: 27 l (7.1 gal)

Maximum temperature

1,700 °C, 1,800 °C (3,092 °F)

Description

The laboratory HTF high temperature furnace range comprises 1700 °C and 1800 °C models. The two smaller models in each temperature are bench mounted and the larger units are floor-standing. These furnaces may be customised in order to satisfy specific customer requirements, e. g. the addition of catalytic afterburners for ceramic binder burn-off applications. Standard features 1700°C & 1800°C maximum operating temperature From 4 to 10 litre capacities High quality molybdenum disilicide heating elements Vertical lift door keeps heated surface away from the user Advanced refractory interior, used in combination with energy efficient low thermal mass insulation Programmable 3216P1 controller Over-temperature protection Digital RS232 communications Fan cooling for low external case temperature Options (specify these at time of order) A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
