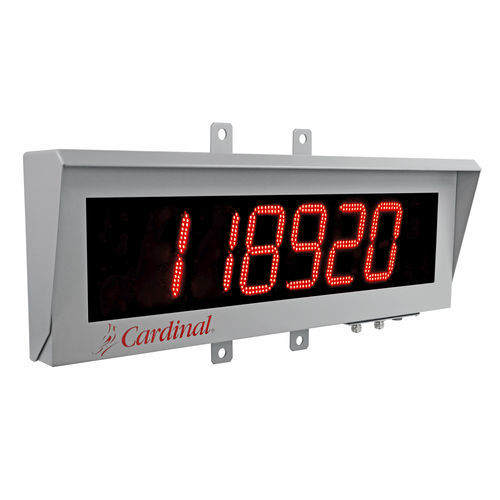

Remote display SB550

LED6-digit7-segment

Cardinal Scale’s SB550 remote display is excellent for weight data visibility in outdoor applications and from distances. The SB550 features large 5 in/13 cm high dual-row LED digits for easy viewing, includes four mounting flanges for easy installation, senses ambient light levels from total darkness to direct sunlight, and offers high visibility with a 250 ft/75 m viewing range making it ideal for use with truck scales. The powder-painted steel, weatherproof IP65-rated enclosure has a rain/sun hood for added visibility benefits. The SB550 is compatible with all current and legacy Cardinal Scale indicators and most indicators from other manufacturers. It can be configured for either RS232 or RS485 with baud rate selectable from 1200 to 115.2k (20mA current loop is limited to 9600 bps). Features • Excellent weight data visibility in outdoor applications and from distances • High visibility 250 ft/75 m viewing range • Large 5 in/13 cm high dual-row LED digits for easy viewing • Powder-painted steel, weatherproof IP65-rated enclosure with rain/sun hood • Includes four mounting flanges for easy installation • Senses ambient light levels from total darkness to direct sunlight • Compatible with all current and legacy Cardinal Scale indicators and most indicators from other manufacturers • Can be configured for either RS232 or RS485 with baud rate selectable from 1200 to 115.2k (20mA current loop is limited to 9600 bps) • +/- 70 degree viewing angle • 7-segment, 6 digits with decimal points Specifications Character Height: 5 inch / 12.7 cm Display Type: High-intensity dual-row LED Number of Characters: 7-segment, 6 digits with decimal points
