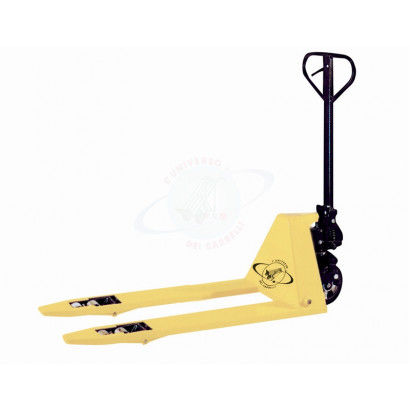

Hand pallet truck TCRF RIBASSATOlow-profilemultifunction
Add to favorites
Compare this product
Characteristics
- Operation
- hand
- Other characteristics
- multifunction, low-profile
- Load
2,000 kg
(4,409.25 lb)- Lifting height
185 mm
(7.3 in)- Fork length
1,150 mm
(45.28 in)- Fork width
530 mm
(20.9 in)- Weight
81 kg
(178.57 lb)
Description
TCRF RIBASSATO
LOW PROFILE PALLET TRUCK - lowered fork height: 51mm
TECHNICAL SPECIFICATIONS
Capacity - Kg - 2.000
Weight - - Kg - 81
Overall fork length - l - mm - 1.150
Width overall forks - - mm - 530
Overall length - L - mm - 1.443
Lowered height - - mm - 51
Stroke height - - mm - 11
Raised height - - mm - 185
rubber steer wheels mounted on roller bearings - Ø - mm - 200
Steer arc degrees 202° - - -
Turning radius Wa - mm - 1.320
Working aisle for europallet 800x1.200 Ast - mm - 1.800
Tandem steel front rollers - - -
3 positions fingertip control for lift, lower and neutral positioning
Heavy gauge steel construction with continuous seam welds
Oven dried epoxy powder painting
