Hand pallet truck TCRF 2MM 45

multifunction

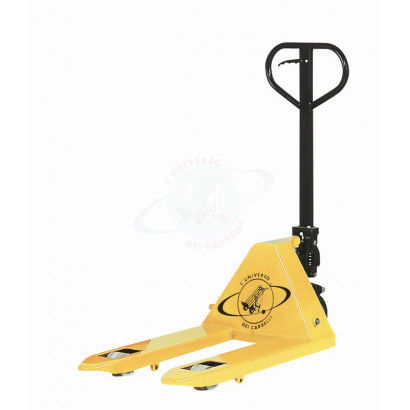

TCRF 2MM 45 HAND PALLET TRUCK TANDEM FRONT ROLLERS forks 450x800 Hand pallet truck with compact pump, external oil tank and smooth rolling elastic wheels, perfect for moving pallets having inner distance between forks lower than the standard one. Being the smallest pallet truck of its category, with fork width and length 450x800 this pallet truck grants both capacity and resistance and an high manoeuvrability. TECHNICAL SPECIFICATIONS Capacity Kg - 1.000 Weight - - Kg - 60 Overall fork length l - mm - 800 Width over forks mm - 450 Total length L - mm - 1.200 Lowered height mm - 85 Stroke height mm - 115 Raised height mm - 200 rubber steer wheels with roller bearings Ø - mm - 200 2 nylon front roller Steer arc degrees 205° Turning radius Wa - mm - 1.000 Working aisle for pallets 800x600 Ast - mm - 1.485 3 positions fingertip control for lift lowering and neutral positioning Modular pump - - - Heavy gauge steel construction with continuous seam welds Oven dried epoxy powder painting
