- Stainless steel gasket sheet
- Carrara Global Sealing Solution

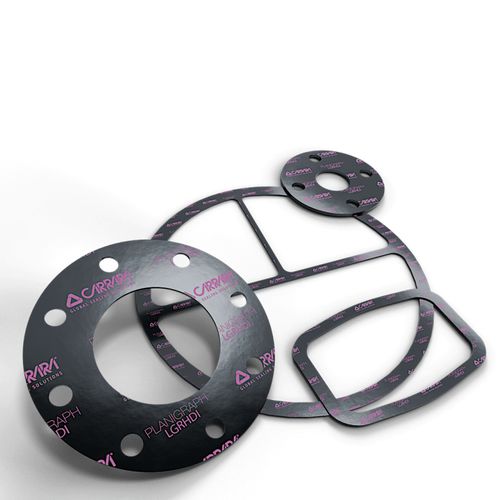

Expanded graphite gasket sheet PLANIGRAPH™ LGRHDIstainless steelflangehigh-temperature
Add to favorites
Compare this product
Characteristics
- Material
- expanded graphite, stainless steel
- Product applications
- flange
- Other characteristics
- high-temperature, high-pressure
- Temperature limit
Max.: 550 °C
(1,022 °F)Min.: -196 °C
(-321 °F)- Pressure limit
200 bar
(2,900.8 psi)
Description
Expanded Graphite Industrial Grade
Multiple smooth SS316L inserts with a thickness of 0.05 mm
Characteristics
The Planigraph™ LGRHDI graphite gasketing sheets are suitable for high-temperature and high-pressure applications on RF, FF, LMF, and LTG flanges in piping or industrial machinery. Planigraph™ LGRHDI features low relaxation values combined with excellent mechanical strength.
Applications
The graphite gaskets Planigraph™ LGRHDI are suitable for all flanges, including RF, FF, LMF, and LTG. Graphite cannot be used with oxidizing fluids.
